Application

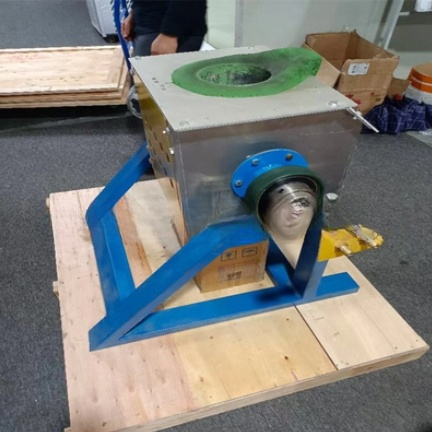

The electric induction melting furnace can be used to melt cast iron or steel with a max temperature of 1900 degree celcius. The medium inducton melting furnace is of tilting type. The furnace takes a small size, and is very convenient in operation. The electric metal melting furnace has alarm function and fault detection function, such as fault state protection and display including overcurrent, overvoltage and water shortage, etc.
Specifications
Energy: Electric Induction
Working Power: 110KW
Input voltage range: 70V-550V
Output oscillation frequency: 1-20KHZ
Output current: 30-200A
Weight:
+ Main machine: 80kg;
+ Control cabinet: 65kg
Dimension:
+ Furnace: 1050*790*1200mm (L*W*H);
+ Power supply: 820*420*890mm (L*W*H);
+ Control cabinet: 550*400*510mm (L*W*H)
Capacity: 50KG cast iron
Crucible Type: Graphite
Max temperature: 2000 Degree Celcius (hearth)
Cooling type: Water cooling
Cooling water requirement: ≥0.3Mpa; ≥20L/min
Supply scope:
Heating power source, 1 set;
Foot switch, 1 pc;
Connection wire 2pcs; single wire 1 pc;
Electric induction melting furnace body 1set; flexible connection cable 2pcs;
Protective cap 1 set; protective gloves 1 pair;
User manual 1 copy;
