Wondery WDL-ZLQ-5000 Rotary Gas Fired Melting Furnace ສໍາລັບການເຮັດອາລູມິນຽມ ingot (5000kg)

Application

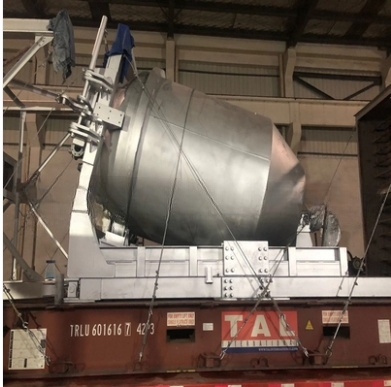

The rotary melting furnace produced by our company is mainly used for recycling of used materials by re-melting.

The aluminum melting furnace has the advantages of automatic ignition, flame protection and complete combustion.

Our company has the following melting furnaces: rotary metal melting furnace, reverberatory melting furnace, crucible melting furnace, gas fired aluminum holding furnaces, rotary degassing machine, transfer ladles, ladle bakers, etc.

Specifications

Furnace Capacity: 5000KG  (could be customized, 1ton to 20ton)

Fuel: Natural gas or LPG gas

Burning system: main burner head, main fire electromagnetic valve, proportional motor, air pressure switch, UV flame detector ,burning controller, combustion-supporting fan, temperature controller, low voltage components (such as buttons, air switch, contactor, relays), control cabinet

Power Supply: 380V 3P 50Hz

Max Temperature: 1100℃

Rotation Speed: 10-12m Per Min
