Wondery WDL-RGR-300 Aluminum Scraps ອຸດສາຫະກໍາ Rotary ປະເພດອາລູມິນຽມ Melting Furnace Double Crucible ປະເພດ (300kg/h)

Maximum Melting Rate (kg/h): 300

Furnace body: 2 crucible type

Furnace type: Rotary Type

Furnace: Graphite Crucible

Wall Temperature: ≤ 40℃

Temperature Control: ±5℃

1. Application

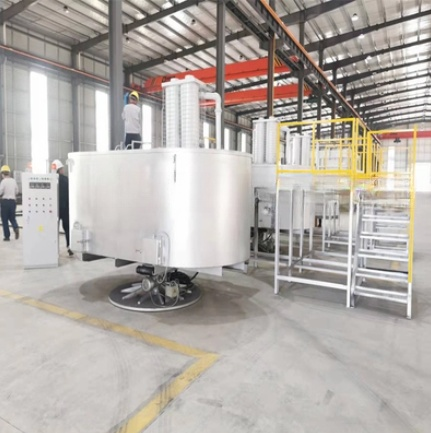

1.1 The rotary melting furnace is of double crucible design. The rotary

melting furnace body can manually or electrically rotate for alternative use.

1.2 The rotary type crucible melting furnace lining adopts imported refractory fiber module or casting material, which has the characteristics of good heat preservation effect, low heat storage, and fast heating speed. The wall temperature rise is ≤ 40℃.

1.3 The rotary type crucible melting furnace adopts the Taiwan brand temperature

controller with PID control.

The temperature control accuracy reaches ±5℃.

1.4 The rotary type crucible melting furnace is equipped with one thermal couple protected by the silicon nitride outer pipe, and this thermal couple could directly measure the aluminum liquid.

1.5 The rotary type crucible melting furnace adopts Vesuvius brand graphite

crucible, which has a good thermal conductivity, a long life, and no iron hyperplasia.

1.6 The rotary type crucible melting furnace is equipped with liquid leak alarm, over-temperature alarm and other functions to ensure the safety of equipment and operation.

1.7 The rotary type 2-body crucible melting furnace greatly improves the

working efficiency. It is widely used in the die casting operation.
