Diameter (mm): 530
Height (mm): 530
Crucible Capacity: 150kg
Melting Capacity: 80kg/h
Wall Temperature: ≤ 40℃
Furnace type: Gas Fired
Structure: Non Tilting Type
Die Casting Machine Tonnage: 180~280T
Burning System: Burner Or Pipe Burning System
1. Chracteristics
1.1The aluminium die casting furnace lining is of the once forming casting material, which has a good heat preservation effect and a fast temperature rising speed. The wall temperature rise is ≤ 40℃.
1.2 The furnace is equipped with the integrated or separation body type burner, which has a stable
performance and proportional control, and saves energy consumption.
1.3 The metal melting furnace adopts the Taiwan brand temperature controller.
1.4 The aluminum die casting furnace is equipped with one thermal couple protected by the silicon nitride outer pipe, and this thermal couple could directly measure the aluminum liquid.
1.5 The crucible melting furnace is equipped with liquid leak alarm, over-temperature alarm
and other functions to ensure the safety of equipment and operation.
1.6 The furnace is of Vesuvius brand, which has a good thermal conductivity, a long life, and no iron hyperplasia.
1.7 The non tilting type aluminum melting furnace is comprised of furnace body, burning sytem, electrical control system and graphite crucible.
1.8 We have full range die casting aluminum melting furnaces and zinc melting furnaces to work together with the die casting machine. And we have auxiliary equipment such as rotary aluminum
degassing machine, aluminum transfer ladles, etc.
3. Die casting furnace

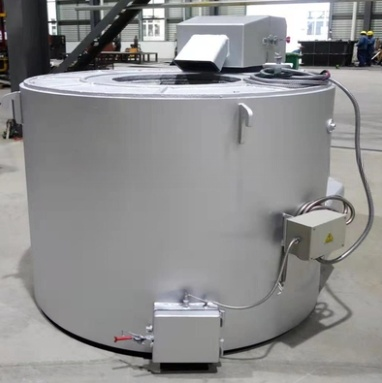

The non tilting type aluminum die casting melting furnace is used beside the die casting machine.
We have the furnace capacity from
100kg to 1500kg. In addtion we have the aluminum holding furnaces, continuous aluminum melting
furnaces, and aluminum liquid transfer ladles.
