The lead melting furnace shell: steel plate for heavy duty furnace, 10mm thickness;
Natural gas consumption: 35m3/hour;
Natural gas supply pressure: 5000Pa;
Temperature of furnace hearth: 500-600℃;
Melting pool capacity: 2000Kg lead;
Furnace rotation speed: 1 circle/min;
Melting cycle: 2 hours per batch (including charging and melting time);
Diameter of charging hole: 510mm;
Fan: 3KW, 380V;
Overall size of rotary furnace: 3880*1850*2000mm (L*W*H)；
Reduction Ratio: 1/85
Holding Torque: 48KN.M
Accuracy: ≤0.2°
Power Supply: 220V
1. Brief Introduction

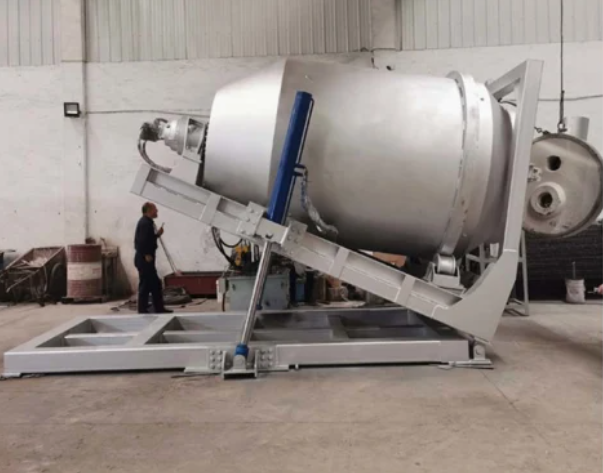

WDL-QQZ-2000 lead melting furnace is used for melting
and recycling lead materials. The burner system employs famous
brand oil burner, which has the advantages of automatic ignition,
flame protection and complete combustion.
The shape of the furnace is oval. Both sides of the furnace hearth
are built with special high strength castable material. The furnace
has high speed melting rate, good heat preservation performance,
low consumption, low using cost, safety and reliability. It can be
used for melting and holding at same time.
1.1 The industrial metal melting furnace body is comprised of refractory
layer, heat preservation
layer and insulation layer. The furnace hearth is casted by high strength
and unshaped refractory material. There is a pressure ring in the furnace
to extend the flame's stay time in the furnace, improve the melting speed
and reduce energy consumption. The heat preservation layer and insulation
layer are composed of ceramic fibers. Therefore, the furnace body heat
storage is small, temperature rise is fast, heat preservation is good,
energy consumption is low.
1.2 The burner fan, magnetic valve, igniting device and flame monitor
constitute as a whole. Turn on the power supply (220V), and the
burner can be started.
1.3 Furnace lining:
First layer: impermeable castable, heat resistant castable;
Second layer: Mullite insulation brick, Super thermal insulation ceramics,
Thermal insulation materials;
Third layer: Super thermal insulation ceramic fiberboard;
1.4 Electric rotating alternating structure of furnace body
(electric rotating reducer):
Rotating method: 360°positive and negative rotation structure;
Loading capacity: furnace weight 6ton+ lead liquid 2ton;
Reducer: BWEN-2715-29´9-3;
Reduction ratio: 1/85;
Motor capacity: 5.5KW.4P.380V.50HZ;
Rotating speed: 1RPM-3RPM;
Accuracy: ≤0.2°;
Holding torque: 48KN.M;
2. Standard Configuration
2.1 Furnace body, 1 set
2.2 Automatic temperature control cabinet, 1 set
2.3 Transmission mechanism, 1 set
2.4 Fuel oil burner system, 1 set;
2.5 User manual 1 copy
