Rated capacity, t: 0.5 (Cast iron/Steel)
Rated tapping temperature, ℃: 1480
Melting rate, t/h: 0.5 *
Melting time, minutes/time: 60±5%*
Power consumption, KWH/T: 400±5%*
- Power Cabinet:
Rated power, KW: 400 (0-400 can be adjustable)
Input Voltage, V: 3N 380V (Mid-range)
Electric rectificate mode: 6Pluse
- Cooling water of power:
Pressure of water, Mpa: 0.1-0.12 (Note: closed water inlet pressure 0.12Mpa, return water pressure 0.06Mpa;)
Inlet water temperature, ℃: 5~35
Outlet water temperature, ℃: ≤45
Raise of water temperature, ℃: 10
Note :* Must meet the following conditions:
1,the tapping temperature ≤ 1600 ℃;
2,scrap collection rate ≥ 97%;
3,hot, continuous, feeding speed is compact;
4,insulation, except slag; light material packing briquettes, aniseed cutting; press the mechanical hand with the steel to the actual weighing as a benchmark
1.What is a steel melting industrial induction furnace?
The steel melting industrial induction furnace is an efficient solution for melting steel scraps. Our melting industrial induction furnaces are equipped with hydraulic tilting arrangement for smooth tilting operation. The steel melting furnace is of electric induction type, and the industrial induction furnaces can work at a max temperature of 1900 degree celcius. Also the auxiliary equipment for the melting industrial induction furnace can be provided such as

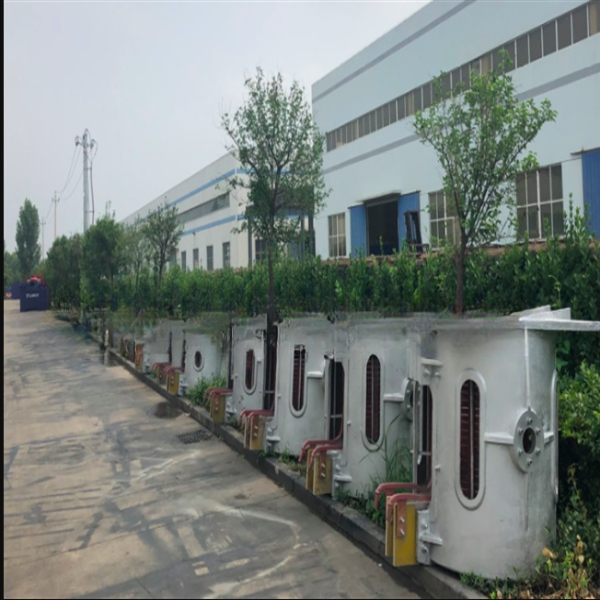

2. Aluminum Shell Induction Furnace Body
The aluminum shell uses aluminum frame structure, furnace body structure composed of furnace fixed mount and furnace body, furnace fixed mount and furnace body takes globality frame structure. Furnace body tilting is controlled by hydraulic system. The aluminum shell industrial induction furnace for melting steel saves the cost compared with the steel shell type melting industrial induction melting furnace.
