Wondery 70KW Induction ຄວາມຖີ່ຂະຫນາດກາງ ເຕົາ Melting ສໍາລັບທາດເຫຼັກ Cast ເຫຼັກກ້າເຫຼັກຂູດໂລຫະ (70 kW; 340V-430V; 25 kg)

Crucible Type: Graphite

Application: Melting Cast Iron, Steel

Customized Service: Yes

Max Temperature: 2000 Degree Celcius

Power Module: IGBT Module

Output power: 70KW

Input voltage range: 340V-430V

Output oscillation frequency: 1-20KHZ

Max input current: 105A

Output current: 400-3500A

Capacity: 25KG cast iron

Cooling type: Water cooling

Cooling water requirement: 0.8~0.16Mpa; 9L/min

Weight:

- Power supply: 80kg;

- Control cabinet: 60kg

Dimension:

Main machine: 725*600*900mm(L*W*H);

Control cabinet: 670*420*500mm (L*W*H)

Supply Scope:

3.1 Heating power source, 1 set;

3.2 Foot switch, 1 pc;

3.3 Connection wire 2pcs; single wire 1 pc;

3.4 Furnace body 1set; flexible connection cable 2pcs;

3.5 Protective cap 1 set; protective gloves 1 pair;

3.6 User manual 1 copy;

4.How induction melting furnace works

The metal melting furnace is easy in operation.

Turn on the general power switch.

Put in the raw material.

Press power supply button.

Adjust the power to maximum value.

Melting starts.

Press stop button.

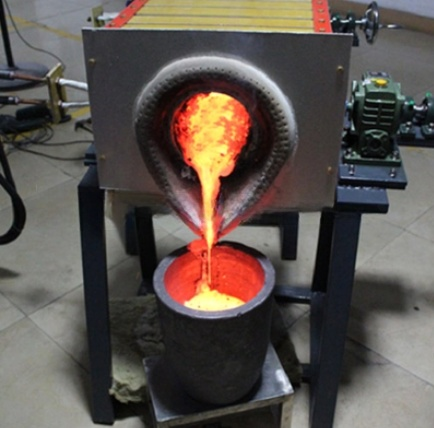

Pour the molten liquid into the molds.
