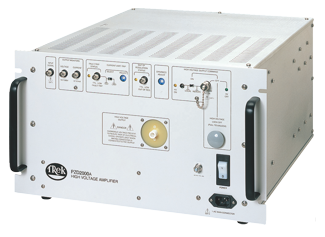

Trek PZD2000A-L High Voltage Amplifier (100V/115V)
Line Voltage: 100 to 115 V AC
Output Voltage Range: 0 to ±2 kV DC or peak AC
Output Current Range: 0 to ±200 mA DC or ±400 mA peak AC*
Maximum duration for ±400 mA current pulse is 2 ms at 50% duty cycle using a square wave
Input Voltage Range: 0 to ± 10 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 200 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±2 V
Output Noise: Less than 500 mV rms**
Slew Rate (10% to 90%): Greater than 750 V/µs
Settling Time: Less than 50 µs for a 0 to 2 kV step
Large Signal Bandwidth : DC to greater 60 kHz (3% Distortion)
Small Signal Bandwidth (-3dB): DC to greater than 100 kHz
Dimensions: 266 mm H x 482 mm W 655 mm D
Weight: 24,9 Kg
