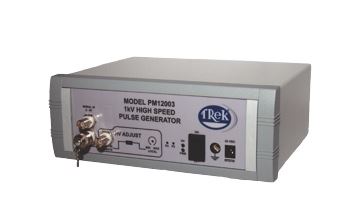

Trek PM12003 High-Voltage Pulse Generator ( 0 to + 1kV peak AC)
Output Voltage Range: 0 to +1kV peak AC, adjustable.
Max Source Current: Rise Time: Less than 5A peak AC, 5mA DC
Rise Time (10 to 90%, 10pF load): Less than 10ns
Fall Time (10 to 90%,10pF load): Less than 100µs
Maximum Pulse Repetition Rate : 1 kHz
Pulse Width Range: 20 µs to 350 µs
Dimensions: 104mm H x 232mm W x 217mm D
Weight: 1.36kg
- Output Voltage Range:
- Max Source Current:
- Rise Time:
- Maximum Pulse Repetition Rate:
- Pulse Width Range:
- 0 to +1 kV
5A peak AC, 5mA DC
Less than 10ns
1 kHz
20 μs to 350 μs
The Model PM12003 is a High-Voltage Pulse Generator designed to provide precise control of output voltages in the range of 0 to +1 kV AC with an output current range of 0 to 5 A peak AC or 5 mA DC.
The Model PM12003 features a solid-state output topology for fast rise times.
Typical Applications Include
- Dielectric testing
- Electro poration
- Materials research
- Nuclear medicine
- Optics/Photonics
- Plasma applications
- Semiconductor testing - IGBT/Diode tests
- Shock testing of solar panels
Features and Benefits
- Fast rise time
- High peak current
- Adjustable pulse width
