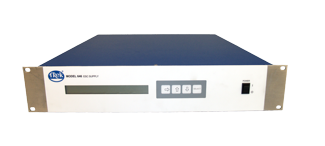

Trek 646 Electrostatic Chuck Supply (±3kV)
- Output Phasing:
Voltage A (Reference Phase) 0 to ±3 kV
Voltage B (Phase B = [-1] x Phase A) 0 to ±3 kV
- Output Voltage Range: 0 to ±3 kV
- Output Current Range: 0 to ±6.5 mA DC with a peak capability of 10 mA
- Mechanical:
Dimensions: 88.1 mm H x 431.8 mm W x 531.9 mm D (3.47” H x 17” W x 20.9” D) 1U rack enclosure
Panel Width: 482.6 mm (19”)
Weight: 11 lbs (5.0 kg)
Connectors: 15-pin “D” ITT Canon used by remote device to control/monitor the unit, 9-pin “D” ITT Canon RS232,
3-Pin FCT “D” High-Voltage, standard type-A USB, Ethernet (optional) and Front Panel
Power ON/OFF: 2-position rocker switch
- Operating Conditions:
Temperature: 0°C to 35°C (32°F to 104°F)
Relative Humidity: To 85%, noncondensing
Altitude: To 2000 meters (6561.68 ft.)
- Electrical:
DC Input Receptacle: 2.0 mm locking DC jack; center contact is positive and shell is negative (receptacle mates with Switchcraft S761K plug)
Ground Receptacle: Ground stud
Power Requirements: 24 V DC, 2.0 A
- Supplied Accessories:
Operator Manual, SW: PN: 24013
USB Cable: PN: BA103
HV Connectors: PN: B8076R
DC Plug (Switchcraft S761K): PN: BA119R
Line Cord, Fuses: Selected per geographic destination
- Optional Accessories:
90-264 V AC to 24 V DC Power Adapter: PN: IK045
