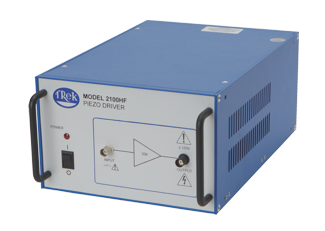

Manufacturer: Trek
Model: 2100HF-H
Origin: USA
Warranty: 12 months
- Performance:
Output Voltage Range: 0 to ±150 V DC or peak AC
Output Current Range: 0 to ±300 mA DC
Input Voltage Range: 0 to ±3 V DC or peak AC
Input Impedance: 50W, nominal
DC Voltage Gain: 50 V/V
Offset Voltage: Less than ±100 mV
Output Noise: Less than 50 mV p-p
Slew Rate (10-90%): Greater than 2000 V/µs
Large Signal Bandwidth (-3 dB): DC to greater than 2.6 MHz
Small Signal Bandwidth (-3dB): DC to greater than 3 MHz
Stability:
Delay Time Less than 6 mV/ minute, noncumulative
Drift with Temp Less than 150 ns (input to output)
- Mechanical:
Dimensions: 141 mm H x 213 mm W 336 mm D (5.57” H x 8.38” W x 13.22” D)
Weight: 6.8 kg (15 lb)
HV Connector: BNC Connector
- Electrical:
Input Power: 180 to 250 V AC, at 48 to 63 Hz at 48 to 63 Hz
Supplied Accessories:
Operators’ Manual: PN: 23435
HV Output Cable: PN: 47508 (3m)
Line Cord, Spare Fuses: Determined by the geographical destination of the unit
