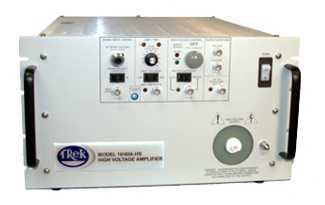

Trek 10/40A-HS-L High-Voltage Power Amplifier (100/115V)
Line voltage: 100/115V
Output Voltage Range: 0 to ±10 kV DC or peak AC
Output Current Range: 0 to ±40 mA DC or 120 mA peak AC for 1 ms* Must not exceed 40 mA rms max
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±2 V
Output Noise: Less than 0.5 V rms*
Slew Rate (10% to 90%, typical): Greater than 900 V/µs
Large Signal Bandwidth (-3 dB): DC to greater than 23 kHz
Large Signal Bandwidth (1% distortion): DC to greater than 9 kHz, typical
(The unit will trip when the maximum bandwidth
is reached)
Small Signal Bandwidth (-3dB): DC to greater than 25 kHz
Dimensions: 279 mm H x 482 mm W 654 mm D
Weight: 24,9 Kg
