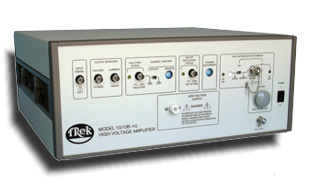

Trek 10/10B-HS-L HIGH-SPEED HIGH-VOLTAGE POWER AMPLIFIER
Output Voltage Range: 0 to ±10 kV DC or peak AC
Output Current Range: 0 to ±10 mA DC or ±40 mA peak for 1 ms
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±2 V
Output Noise: Less than 0.5 V rms*
Slew Rate (10% to 90%190 mm H x 432 mm W 417 mm D , typical): Greater than 700 V/µs
Large Signal Bandwidth (-3 dB): DC to greater than 19.5 kHz
Large Signal Bandwidth (1% distortion): DC to greater than 9.5 kHz
Small Signal Bandwidth (-3dB): DC to greater than 60 kHz
Line Voltage: 100/115V
Dimensions: 190 mm H x 432 mm W 417 mm D
Weight: 14,9 Kg
