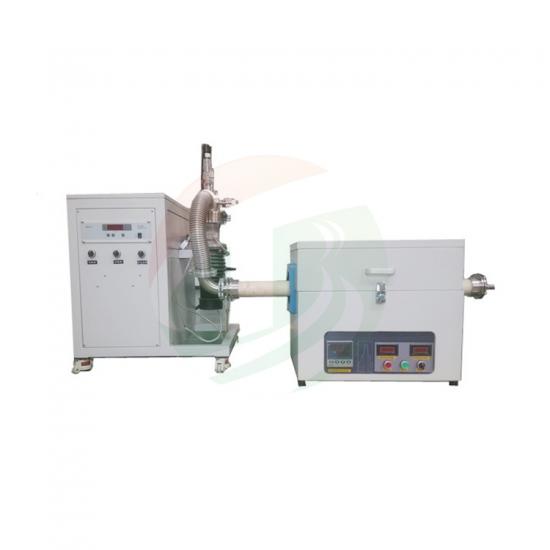

TOB TOB-G1200-250 ເຕົາທໍ່ອຸນຫະພູມສູງ (0-1200℃,200pa)
Voltage AC: 220V
Heating Power: 7KW
Furnace tube size: Dia 250*1000mm
Furnace tube material: Custom quartz tube
Heating Zone: 400mm
Constant Temperature Zone: 200mm
Max working Temperature: 1400℃
Long-term working temperature: 1300℃
Heating unit: KANTHAL Nichrome wire
Heating Rate: 1-20℃ / min adjustable
Suggested heating rate: 5-8℃/min Temperature rate
Temperature control precision: ±1℃
Passable atmosphere: Various inert atmospheres such as nitrogen and argon
Temperature measuring elements and temperature measuring range: K thermocouple, temperature range 0-1200 ° C
Original electric appliance: Partial selection of Schneider imported brands
Instrument control: Yudian GP518P
Sealing Component: Custom flange
Vacuum system (optional): Low vacuum 200- 2000pa High vacuum 6.67x10-3pa
Flowmeter(optional): 0-500ml/min
Control Method: Control mode: Adopt automatic control system
Programming curve segment number: The 31 paragraph can be adjusted to reduce the unnecessary trouble caused by artificial timing.
Display accuracy: ±1℃
Digital display: Measuring temperature and setting temperature double display
Control characteristics: Control system modular structure
Air cooling system: The fan impeller is mounted directly on the bottom of the double furnace shell and assembled with the control system.
