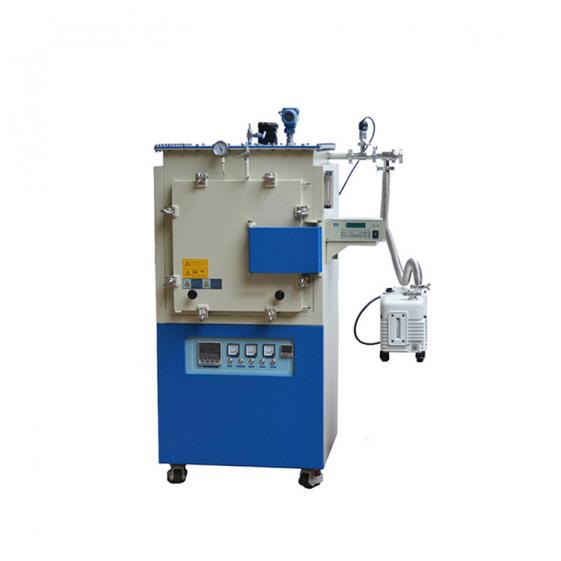

TOB TOB-DSP-VF1400℃-I ເຕົາອົບບັນຍາກາດຕູ້ສູນຍາກາດ (1400℃,8KW,220V,≤10Pa)
Power: 8KW
Furnace tube size(mm): 300X200X200
Dimension: 600X610X 1440
Power supply voltage: 220V
Phase number: Single-phase
Heating element: Silicon carbon rod
Temperature control mode: FP93 temperature control (from Japan)
Control accuracy: +/- 1 ℃
Triggers: Phase-shift trigger
SCR: 106 / 16E Germany Semikron
Max temperature: 1400℃
Rated temperature: 1350 ℃
Vacuum degree in cold state: ≤10Pa
Heating rate: ≤20 ℃ / Min (available upon request modification)
Recommended heating rate: ≤10 ℃ / Min
Thermocouple Type: Type S
Certification: CE
Surrounding surface temperature: ≤45℃
The max temperature under various atmospheres and vacuum
Atmosphere - Max temperature
Air1400℃
Vacuum1100℃
N21270℃
H21100℃
Hydrocarbon gas1150℃
Ar1300℃
