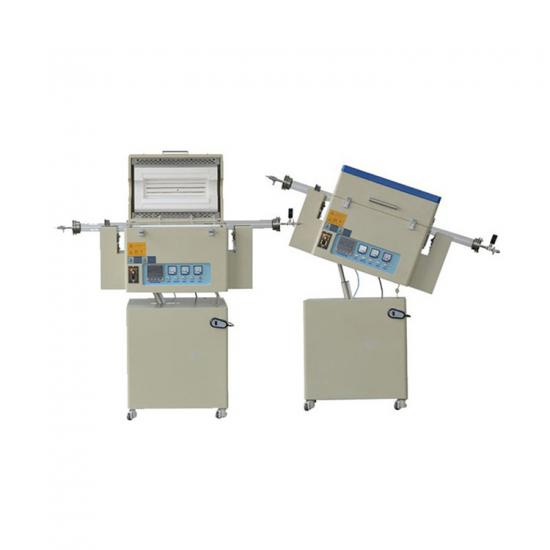

TOB TOB-DSP-1200℃-SRI ເຕົາທໍ່ຫມຸນເຂດດຽວອຸນຫະພູມ (1200℃,3.5KW)
Power: 3.5 KW
Furnace tube size(mm): Dia 60(OD) X1200
Dimension: 580X370X1050
Power supply voltage: 220V
Phase number: Single-phase
Temperature control mode
1.Yudian temperature control: 30 sections can only use PID temperature regulation.
2.FP93 temperature control (from Japan)
Control accuracy: +/- 1 ℃
Tube rotation speed: Stepless variable speed motor, speed can be adjustable between (1-25 turn / min)
Motor rotation power: 40W
Furnace tilt angle range: 0-30 degrees
Electric lift support frame power: 40W
Trigger: Phase-shift trigger
SCR: 106 / 16E Germany Simon Kang
Max temperature: 1200 ° C
Rated temperature: 1100 ℃
Heating rate: ≤30 ℃/ Min (Available upon request modification)
Recommended heating rate: ≤20℃/ Min
Heating length: 400mm
Thermocouple Type: K type
Surrounding surface temperature: ≤45℃
Security System: overcurrent protection.
Cap protection system: when the lid open relay will automatically cut off the main power supply, effectively ensure the safety of users
