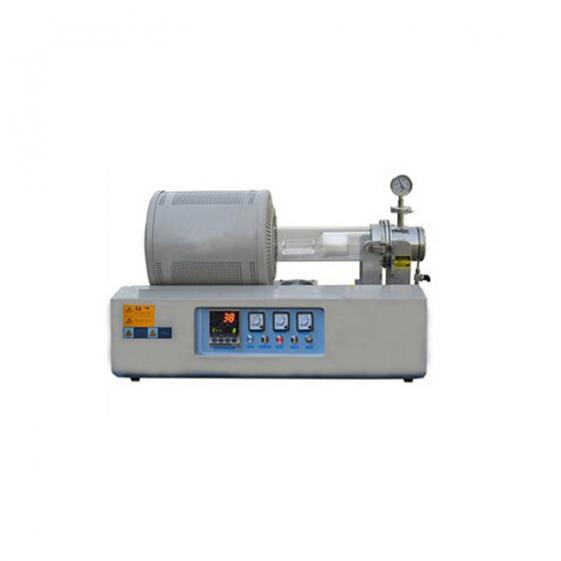

TOB TOB-DSP-1200℃-RTP ເຕົາອົບຄວາມຮ້ອນໄວ (1200℃,24KW)
Power: 24KW
Reaction chamber size: Dia180X200mm
Voltage: 380V
Phase: 3-phase
Heating element: Rapid heating pipe
Temperature control mode
1.Yudian temperature control: 30 sections can only use PID temperature regulation.
2.FP93 temperature control (from Japan)
Temperature control accuracy: +/- 1 ℃
Temperature Repeatability: +/- 1 ℃
Temperature measurement accuracy: +/- 0.2 ℃
Temperature field balance: +/- 2 ℃
Temperature status process time: 2-100 (100-1050 ℃)
Trigger: Three-phase phase-shift trigger soft start
SCR: 106 / 16E Germany Semikron
Max temperature: 1200 ℃
Rated temperature: 1100 ℃
Stable operating temperature: 100-1000 ℃
The fastest heating rate: 300 ℃ / S
Cooling rate: 1~300, can be used to open or remove the tube furnace cooling started simultaneously cooling gas flow meter control valve controlled cooling.
Thermocouple Type: S-type
Heating length: 350mm
Vacuum degree
1.General vacuum and drive gas out by:TW-1.5A
2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa
3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa
4. TOB-DSP-VS high vacuum system enables vacuum degree pumped 10-3 Pa.
Surrounding surface temperature: ≤45℃
Security System: overcurrent protection
