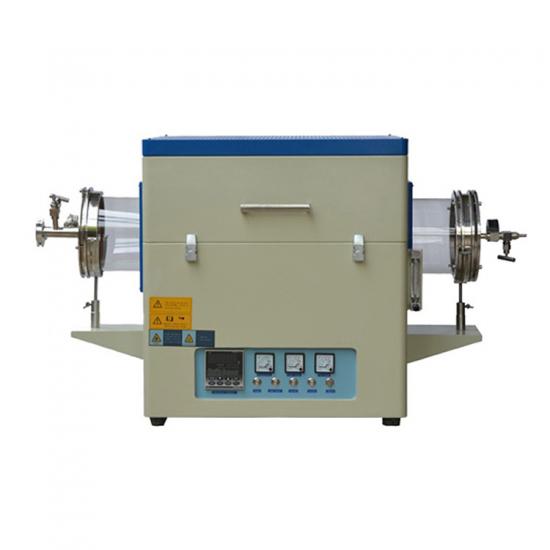

TOB TOB-DSP-1200℃-III ເຕົາອົບສູນຍາກາດ (1200℃,3.5KW,10Pa)
Power: 3.5 KW
Furnace tube size(mm): Dia 100(OD)X1000
Dimension: 580X420X565
Power supply voltage: 220V
Phase number: Single-phase
Temperature control mode
1.Yudian temperature control: 30 sections can only use PID temperature regulation.
2.FP93 temperature control (from Japan)
Control accuracy: +/- 1 ℃
Trigger: Phase-shift trigger
SCR: 106 / 16E Germany Simon Kang
Max temperature: 1200 ℃
Rated temperature: 1100 ℃
Heating rate: ≤30 ℃/ Min (Available upon request modification)
Heating length: 400mm
Thermocouple Type: K type
Recommended heating rate: ≤15 ℃/ Min
Vacuum degree (Optional):
1.General vacuum and drive gas out by:TW-1.5A
2.2XZ-2 Vacuum degree pumps can be able to get around 10Pa
3.TOB-DSP-VS 0.1vacuum system can pumped 0.1Pa
4. TOB-DSP-VS high vacuum system enables vacuum degree pumped 10-3 Pa.
Certification: CE
Surrounding surface temperature: ≤45℃
Security System: overcurrent protection
Switch protection system: when the lid open relay will automatically cut off the main power supply, effectively ensure the safety of users.
