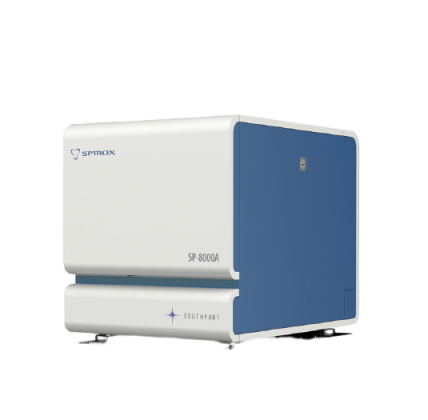

SPIROX SP8000A ເວທີການພັດທະນາການວັດແທກ Confocal Scanning Laser (50X FOV 200μm x 200μm)
Measurement Method: Laser scanning confocal microscope
Laser Wavelength: Up to 4 LASERs (Laser source option: 405nm, 532nm, 633nm, 785nm)
Input/Output Port: One Laser input port (free space); Output: Signal through fiber (FC/PC; SMA)
Objective:
5X FOV 2mm x 2mm
10X FOV 1mm x 1mm
20X FOV 500μm x 500μm
50X FOV 200μm x 200μm
Built-in OM (Optical Microscope) System: Epi-illumination: Adjustable white light LED (IR option); 3MP, 1” Color CMOS Camera
Motor-Z Focusing System
Travel range: 30mm
Resolution (typical): 0.02μm
Repeatability: 0.1μm
Motor: 2 phase stepper motor
High precision joystick
XY Stage
Manual stage range: 100mm x 100mm
Motorized stage (Optional):
Travel range: 205mm x 205mm (8")
Resolution: 1nm
Repeatability: 0.025μm
Velocity: 90mm/s
2-phase stepper motor
Detector: Biakali PMT, Spectral response: 185nm - 750nm
Data Station
OS: Windows 11
Interface USB 3.0
Discrete display card
HDD > 1T
24” LCD display
Weight: 80 KG
Dimension:
Closed: L 755mm x W 560mm x H 629mm
Open: L 901mm x W 560mm x H 957mm
Electrical Character: 110/220V 50/60Hz AC, 150W
