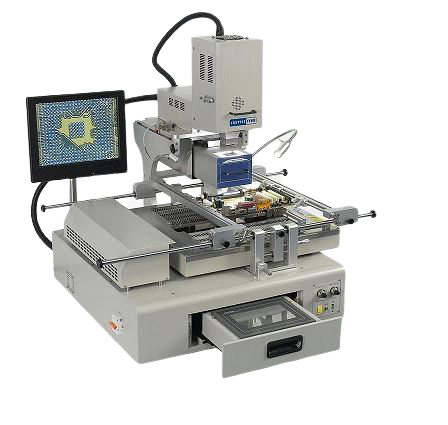

Specifications:
PCB dimension:W20*D20~W550*500
PCB thickness:0.5~4mm
Working table adjustment:: ±120mm Forward/backward, ±80mm Left/right
Temperature control: K-type Thermocouple:Close Close Cycle Controlled
Area heater: Far infrared: 3600W
Top heater: Hot Gas: 1200W
Bottom heater: Hot Gas: 800W
PCB locationway: Outer
Power supply: Single-phase 220v,50/60Hz
BGA dimension: 1*1~70*70mm
Min pitch of BGA ball: 0.15mm
Placement precision: ±0.02mm
Max BGA weight:: 300g
Machine dimension: L850*W750*H630
Weight: Appox: 80kgs
Features：
Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor,
have both the auto soldering and mounting function;
Three heaters( upper/lower hot air heater, bottom IR heater) heating independently,
time and temperature can be displayed digitally on touch screen;
Upper heater is movable, convenient for operation;
Large movable bottom IR heating area, PCB clamps can be adjusted along with
X & Y table flexibly, the max PCB size it can handle up to 550*500mm;
Powerful cross flow fans cool the bottom heating area rapidly with stable speed;
Color optical system with functions of split vision, zoom in/out and micro-adjust,
equipped with aberration detection device; with auto focus and software operation function,
27 X optical focus, able to rework BGA sized up to 70*70mm;
Embedded industrial computer, touch screen interface, PLC control, real-time profile display,
able to display set profile and 5 practically tested profile at the same time;
can analyze the five practically-tested profiles;
Color LCD monitor;
Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
8 segments of temperature up(down) and 8 segments constant temperature control,
profile saving is unli-mited in the industrial computer;
Suction nozzle can identify material and mounting height automatically,
and can control the air pressure within a small range of 30-50g;
