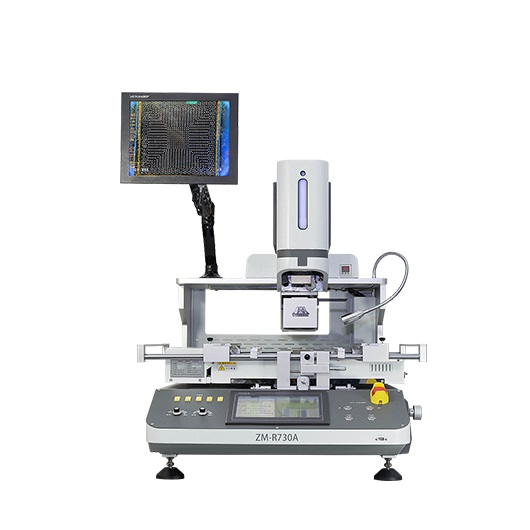

Seamark ZM ZM-R730A ສະຖານີ Rework BGA ກະດານຂະຫນາດໃຫຍ່ (max 7.75KW)

Power Supply: AC380V±10%, 50/60Hz

Power: 7.75KW (Max), Top heater (1.45KW), Bottom heater (1.2KW), IR Preheater (4.8KW), Other (0.3KW)

PCB Size: 632*520mm (Max); 6*6mm (Min)

BGA Chip Size: 80*80mm (Max); 3*3mm (Min)

IR Heater Size: 570*435mm

Temperature Sensor: 5 Pcs

Operation Method: 10" HD touch panel (1080P 16:9)

Control System: Panasonic PLC + Temperature control module

Display System: 15" HD industrial display (1080P 16:9)

Alignment System: 2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator

Vacuum Adsorption: Automatic

Alignment Accuracy: ±0.01mm

Temperature Control: K-type thermocouple closed-loop control with accuracy up to ±1℃

Feeding Device: Yes

Positioning: V-groove with universal fixture

Dimensions: L1000*W835*H960mm

Weight: 130.5KG
