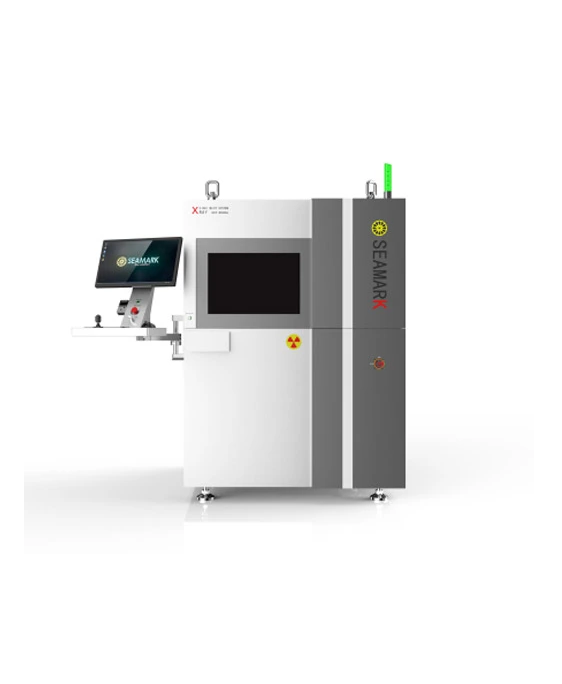

Seamark ZM XCT8500 ລະບົບການກວດກາ X-ray ອຸດສາຫະກໍາທົ່ວໄປ

X-RAY Tube Parameters

Tube Type: Open micro-focus transmission X-ray source

Tube Voltage Range: 20 ~160KV

Tube Current Range: 0.01mA ~ 1.0mA

Maximum Tube Power: 64W

Maximum Target Power: 15W

Minimum Object Distance (FOD): < 300 μm

Micro Focus Size: < 1 μm

Minimum Defect inspection Capability: <500 nm

Flat Panel Detector Parameters

Flat Panel Type: Amorphous silicon flat panel detector (optional)

Pixel Matrix: 1536×1536

Field of View: 154mm×154mm

Resolution: 5.0Lp/mm

Image Frame Rate(1×1): 30fps

AD Conversion Digits: 16bits

3D/CT Parameters（Optional Function）

CT Scan Cycle: 20s

CT Reconstruction Time: 30s

Equipment Performance Parameters

Maximum Sample Size: 645mm×635mm

Maximum inspection Area: 500mm×500mm

Image Geometric Magnification: 2500X

Input Power Supply: 220V 10A 50 - 60HZ

Control System: DELL OptiPlex 7000MT v12.0 i9 graphics workstation

Dimensions: L1500mm×W1650mm×H2250mm

Net Weight: About 2950KG
