Main
- Range: Easy9
- Poles: 1P + N
- Neutral position: Left
- [In] rated current: 20 A
- Network type: AC
- Trip unit technology: Thermal-magnetic
- Curve code: C
- Earth-leakage sensitivity: 30 mA
- Earth-leakage protection time delay: Instantaneous
- Earth-leakage protection class: Type AC
- Breaking capacity: 4500 A Icn at 230 V AC 50 Hz conforming to IEC 61009-1
Complementary
- [Ue] rated operational voltage: 230 V AC 50 Hz
- Magnetic tripping limit: 5...10 x In
- [Ui] rated insulation voltage: 500 V
- [Uimp] rated impulse withstand voltage: 4 kV
- Mounting support: DIN rail
- 9 mm pitches: 4

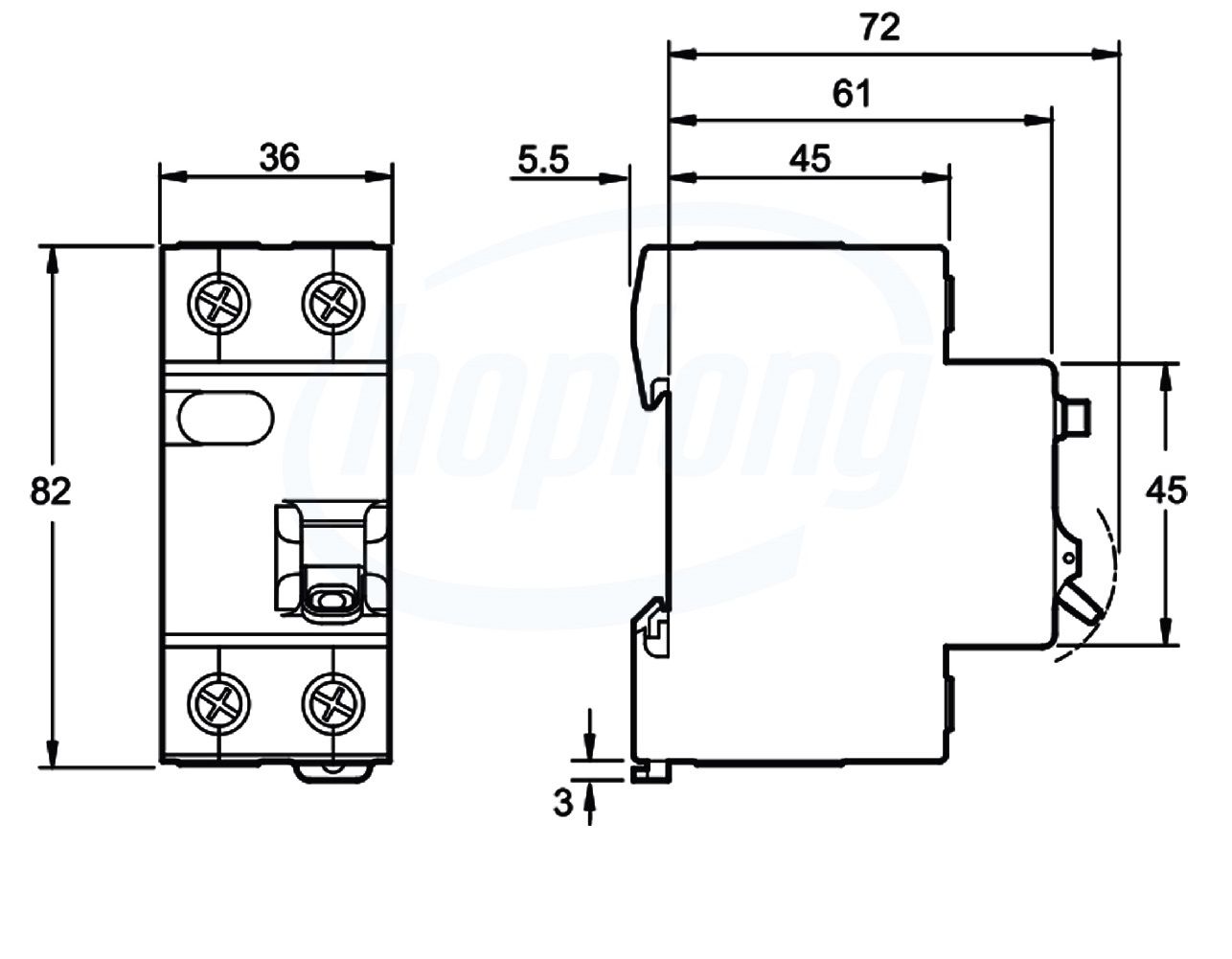

- Height: 81 mm
- Width: 36 mm
- Depth: 66.5 mm
Environment
- Standards: IEC 61009-1
- Product certifications: EAC; GOST
- Relative humidity: 95%
- Ambient air temperature for operation: -25…60°C
- Ambient air temperature for storage: -40…70°C
