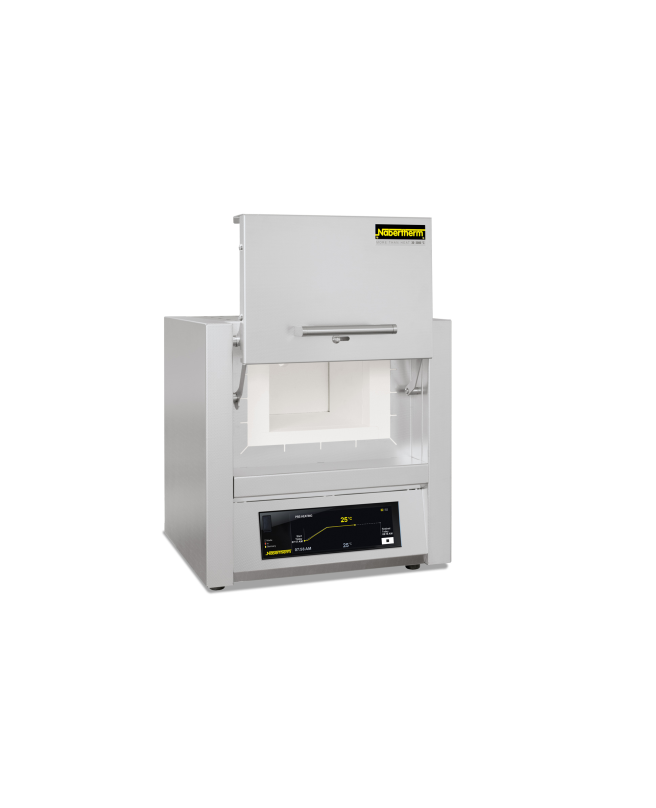

NABERTHERM LT 15/11 (B510) ເຕົາ (15L, 1100°C)

Top-Loading Furnace (Sliding Door)

Maximum temperature: 1100°C

Chamber volume: 15 liters

Controller: B510 with touchscreen, 5 programs, 4 segments

Power supply: 230V/50Hz, single-phase

Power: 3.2 kW

Internal dimensions: 230 x 340 x 170 mm (W x D x H)

External dimensions: 415 x 555 x 515 mm (W x D x H), height with door open (515+240) mm

Weight: 40 kg

Heating time to maximum temperature: 75 minutes

Heating method: Dual-sided ceramic heating plates

Construction:

Ceramic heating plates with integrated heating elements, protected against smoke and sample splashes, and easy to replace.

Adjustable air intake.

Exhaust vent at the rear.

B510 Temperature Controller:

Smartphone app integration: Works with the free “MyNabertherm” app for easy operation and monitoring.

Touchscreen operation: High-contrast display with clear real-time information.

Graphical color display: Displays temperature curves and process data visually.

Process clarity: Clear presentation of process data.

Multilingual interface: 24 selectable languages.

Intuitive icons: Simplifies navigation for various functions.

Precise temperature control.

User level hierarchy: Ensures secure operation.

Program status display: Shows estimated end time with date and time.

USB data export: Saves process curves in .csv format for analysis.

Repair information: Accessible via USB.

Text-based display: For simple information presentation.

Customizable parameters: Adaptable for various processes.

Easy programming: Simple, intuitive program input through the touchscreen.

Program management: Save temperature programs as favorites or in categories.

Segment overview: Detailed process information, including setpoints, actual values, and activated functions.

Program storage: 5 programs with 4 adjustable segments each.

Single-zone temperature control.

Auto-tuning feature.

Real-time display: Shows current system status.

Keypad lock: Prevents unauthorized access.

Skip segment key: Allows skipping or bypassing segments.

Temperature adjustment steps: 1°C or time steps of 1 minute.

Unit selection: °C/°F.

Energy display: Shows power consumption in kWh.

Operating time tracking.

NTLog USB port: For data retrieval and processing.

Wi-Fi capability: Connects to the MyNabertherm app for enhanced control.
