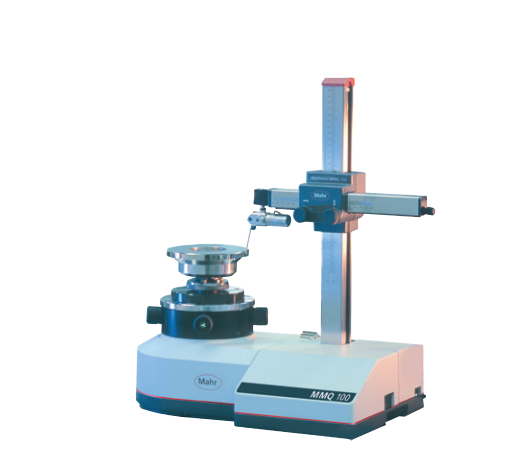

Mahr MMQ 100 ເຄື່ອງວັດແທກຮູບແບບກະທັດລັດ (160mm, 200N)

Roundness deviation (µm+µm/mm measuring height): 0,025 + 0,0003

Axial runout deviation (µm+µm/mm measuring radius): 0,02 + 0,0003

Table diameter (mm): 160

Table load capacity, centered (N): 200

Speed (rpm) 50 Hz / 60 Hz: 5 / 6

Positioning path (mm), Z axis: 300, manual

Z axis positioning: manual

Positioning path (mm), X axis: 180, manual

Supply with:

• MarForm MMQ 100

• Digital encoders in X/Z

• T20W probe

• MarWin®

EasyForm Software

• MarWin PC with WIN 10 operating system

• 24” TFT monitor

• Touch sensitive touch screen monitor (optional

OPTIONS:

• AdvancedForm

• Mahr QE QS-STAT data export
