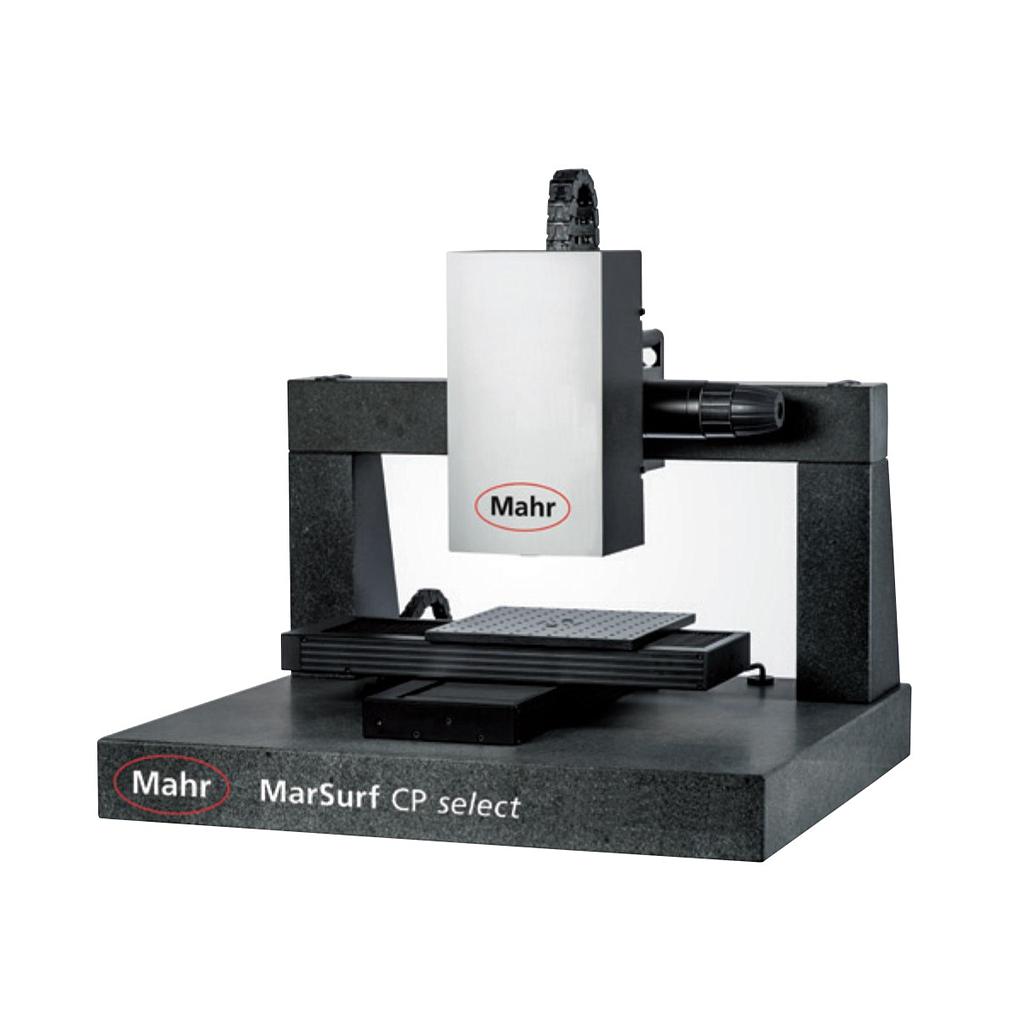

Mahr CP select 3D Profilometry (x 100 mm, y 150mm, z 150mm)

Measuring speed: 4 kHz

Measuring principle: Chromatic-confocal

Power supplied: 100 - 240 V

Surface parameters: ISO 4287, ISO 13565, ISO 25178, …

Positioning volume x: 100 mm

Positioning volume y: 150 mm

Positioning volume z: 150 mm

Supplied with:

•  Chromatic point sensors selectable

•  Portal construction including control electronics, model selectable

•  Motorized XYZ table selectable in different variants

•  Industrial computer incl. two 24“ TFT monitors

•  Vibration damping selectable

•  Overview camera selectable

•  MarSurf MSW

•  MarSurf ASW (optional)

•  MarSurf MfM

•  (Standard, Extended, Premium version selectable)
