Load: 50 kg
Unit switching: Kgf, Nf,Lbf
Test stroke: 0 ~ 150mm
Test speed: adjustable from 0.1 ~ 200mm/Min
Machine size: W400 D350 H1000mm
Power source: 1 30, 220 v, 5 a
Weight: about 65kg touch plug force tester

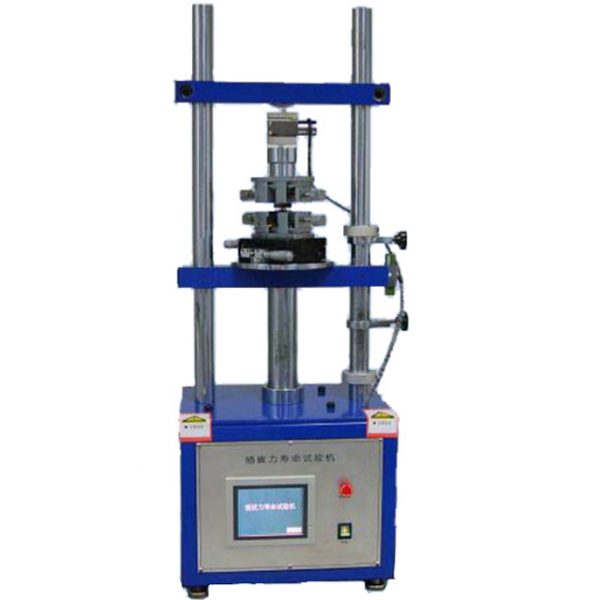

Purpose:
Electronic digital insertion and extraction force tester is suitable for all kinds of mobile phones and computer peripheral connectors plug and pull force test, can be completely accurate plug and pull force value.
Characteristics
Control system: mitsubishi touch screen + mitsubishi PLC, Chinese interface.
Driving part: AC stepping motor.
The touch screen displays the test force, displacement, times and other data in real time.
Use x-y axis fine-tuning mobile platform to ensure the authenticity and validity of test data.All test conditions are input by touch screen and stored automatically.
It has various operation modes such as inching, manual and automatic, and the speed can be adjusted automatically.
