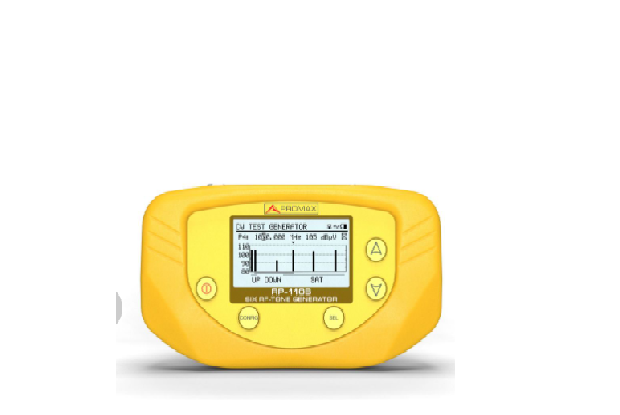

Promax RP-110 Test signal generator for coaxial cable
Manufacturer: Promax
Model:RP-110
Origin: England
Warranty: 12 months
FREQUENCY
Carriers frequency range
P1: 5.00 MHz to 10.00 MHz.
P2: 55.00 MHz to 100.00 MHz.
P3: 460.00 MHz to 540.00 MHz.
P4: 800.00 MHz to 1000.00 MHz.
P5: 1450.00 MHz to 1750.00 MHz.
P6: 1850.00 MHz to 2150.00 MHz.
Resolution: 25 kHz.
Accuracy: ± 50 ppm (at 25 ºC).
CARRIERS LEVEL
Carriers level: 80 to 110 dBμV (selectable in 1dB steps).
Signal level resolution: 1 dB.
Signal level accuracy: ± 2 dB (at 25 °C).
Impedance: 75 Ω.
Flatness in a band: 2 dB.
COMUNICATIONS
USB Interface: For remote control and firmware upgrading.
POWER SUPPLY
Battery: 7,4 V Li-Ion.
Low battery indication: Graphical indicator on the screen: .
Autonomy: More than 5 hours.
Battery charge: Through fast internal charger.
External
Voltage: 12 V DC.
Power: 15 W.
Mains adapter: From 90 V to 250 V, 50-60 Hz (included).
September 2016 23
ENVIRONMENTAL CONDITIONS : Equipment specifications are set in these environmental operating conditions. Operation
outside these specifications are also possible. Please check with us if you have specific
requirements.
Altitude : Up to 2000 metres.
Temperature range: From 5 °C to 40 °C.
Maximum relative humidity : 80 % (up to 31 °C), decreasing lineally up to 50% at 40 °C.
MECHANICAL FEATURES
Dimensions: 180 (W) x 95 (H) x 50 (D) mm.
Weight: 400 g. (including battery and protective bag).
ACCESSORIES INCLUDED
AL-101B: Mains adapter 90 - 250 V AC.
CA-005: Mains cord CEE - 7.
AA-012: Car lighter adapter cable.
AD-055: F/h – BNC/h Adapter.
AD-057: F/h – F/h Adapter.
CC-030: F/F Coaxial Cable.
DC-269: Transport case.
CC-041: USB Cable.
OPTIONAL ACCESORIES
DC-270: Transport suitcase.
