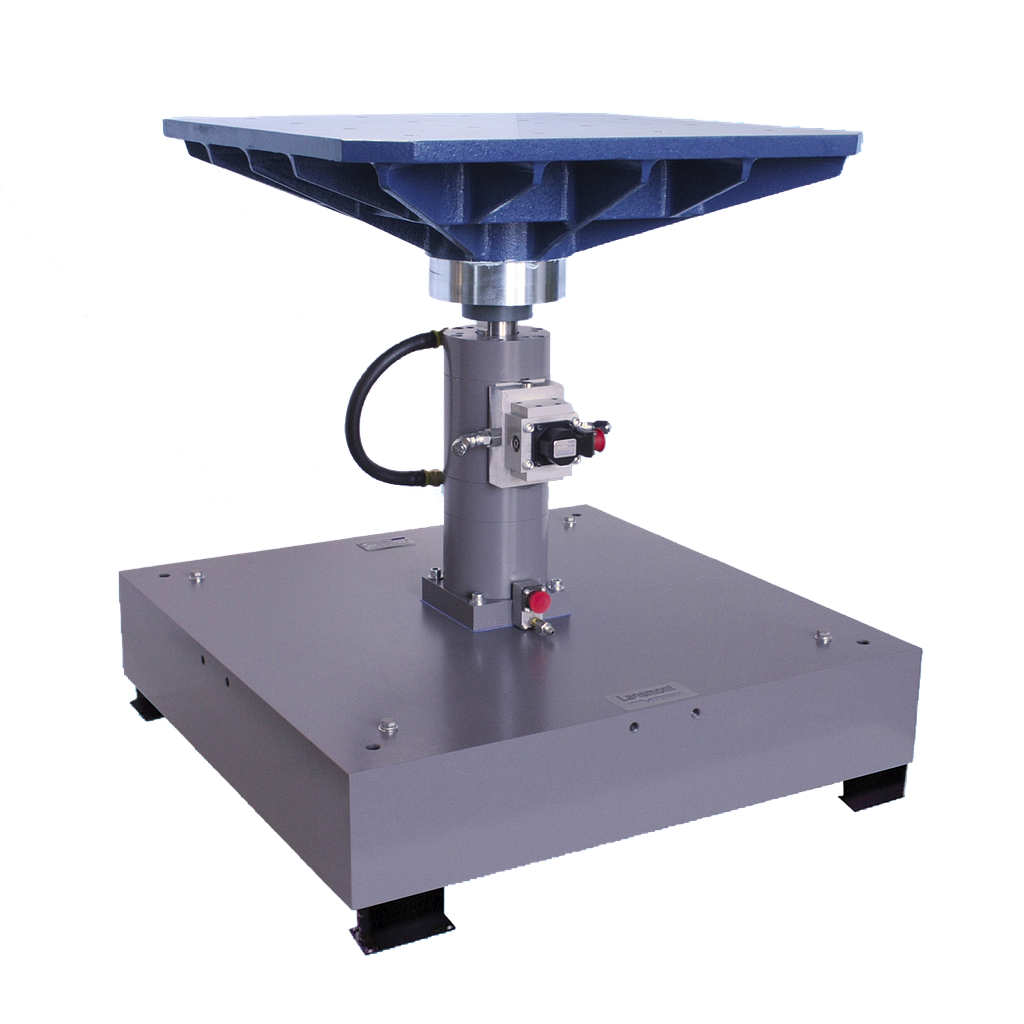

Lansmont 1000 ລະບົບທົດສອບການສົ່ງໄຫມຕັ້ງຕົ້ນ (1 – 500 Hz.)
Frequency Range : 1 – 500 Hz.
Maximum Stroke Options (peak-to-peak) : 2.5 in. (6.4 cm); 4 in. (10.2 cm)
Actuator Stall Force (at 3000 psi (207 bar)) : 1225 lbs. (5.4 kN)
Actuator Dynamic Force (at 3000 psi (207 bar)): 816 lbs. (3.6kN)
PHYSICAL
Table Sizes : 15.8 in. (40 cm) square; 33.5 in. (85 cm) square; 25.6 in. (65 cm) square
Standard Hole Patterns : 6 in. grid, 3/8-16 Stainless Steel inserts; 15 cm grid, M10 x 1.5 Stainless Steel inserts
POWER REQUIREMENTS
System: 115 – 230 VAC, 230 – 460 VAC; 50, 60 Hz; Single (115 – 230 VAC)/ Three (230 – 460 VAC)
Controls: 100 – 230 VAC; 50, 60 Hz.; Single Phase
FACILITY REQUIREMENTS
Cooling Water : The Model 1000 HPS has a built-in cooling fan and does not require cooling water.
Plant Air : The Model 1000 does not require plant air.
