LABTONE EV420 ຕາຕະລາງການສັ່ນສະເທືອນຂອງແຮງໄຊນ໌ຂະໜາດໃຫຍ່ມາດຕະຖານ (2000kgf)

Vibration Generator: VG2000/100

Frequency(Hz): 2-3000

Max Exiting Force(kg.f): 2000

Max. Displacement (mmp-p): 100

Max. Acceleration(g): 90

Max. Velocity(cm/s): 200

Payload(kg): 500

Armature Mass(kg): 23

Armature Diameter(mm): φ320

Cooling Method: Forced Air Cooling

Shaker Weight(kg): 2000

Shaker Dimension L*W*H(MM): 850*1000*1100

Power Amplifier: Amp35k

Power Amplifier Weight(kg): 550

Power Amplifier Dimension L*W*H(MM): 800*550*1920

Utility Requirements: 3-phase AC380V ±10% 50Hz

Aggregate Capacity(KW): 45

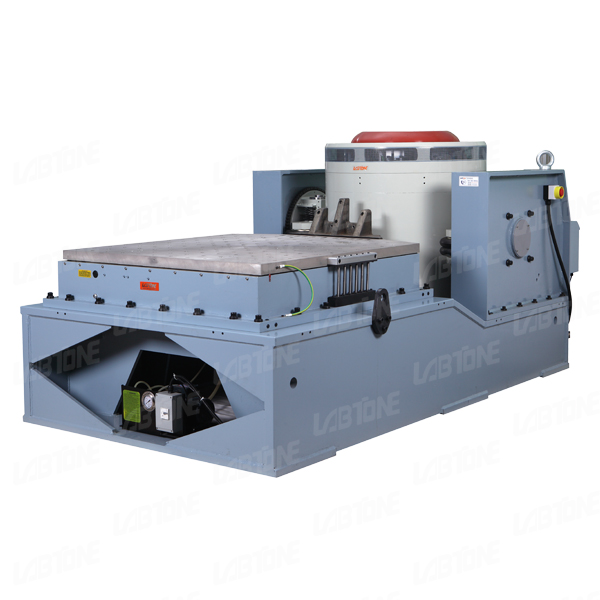

*Product image is for illustrative purposes only

Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

Perfect performance on amplitude variation.

High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.

Rapid self-test diagnostics and chain safeguard, high high safety and reliability

Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission

Different application on the vertical and horizontal tables.

Simple operation for the controller.
