LABTONE EV240 ເຄື່ອງທົດສອບການສັ່ນສະເທືອນແຮງຂະໜາດໃຫຍ່ (40 / 4000kN/kgf)

Amplifier Model: LA40K

Shaker Model: A30S34

Rated Sine Force(KN/Kgf): 40/4000

Rated Shock Force(KN/Kgf): 80/8000

Frequency Range(Hz): 5-3,000

Max. Acceleration Sine/Random(g): 100/60

Max. Velocity(m/s): 2

Max. Displacement Peak-Peak(mm): 51

Max. Payload(kg) : 500

Armature Diameter(mm): 342

Resonance Frequency (Hz)(±5%）: 2500

Effective Moving Mass（kg): 30

Blower: B153

Blower Power : 15kw

Blower Volume Flow Rate/Pressure: 82m3/min ;7.3kpa

System Power: 56+20kVA

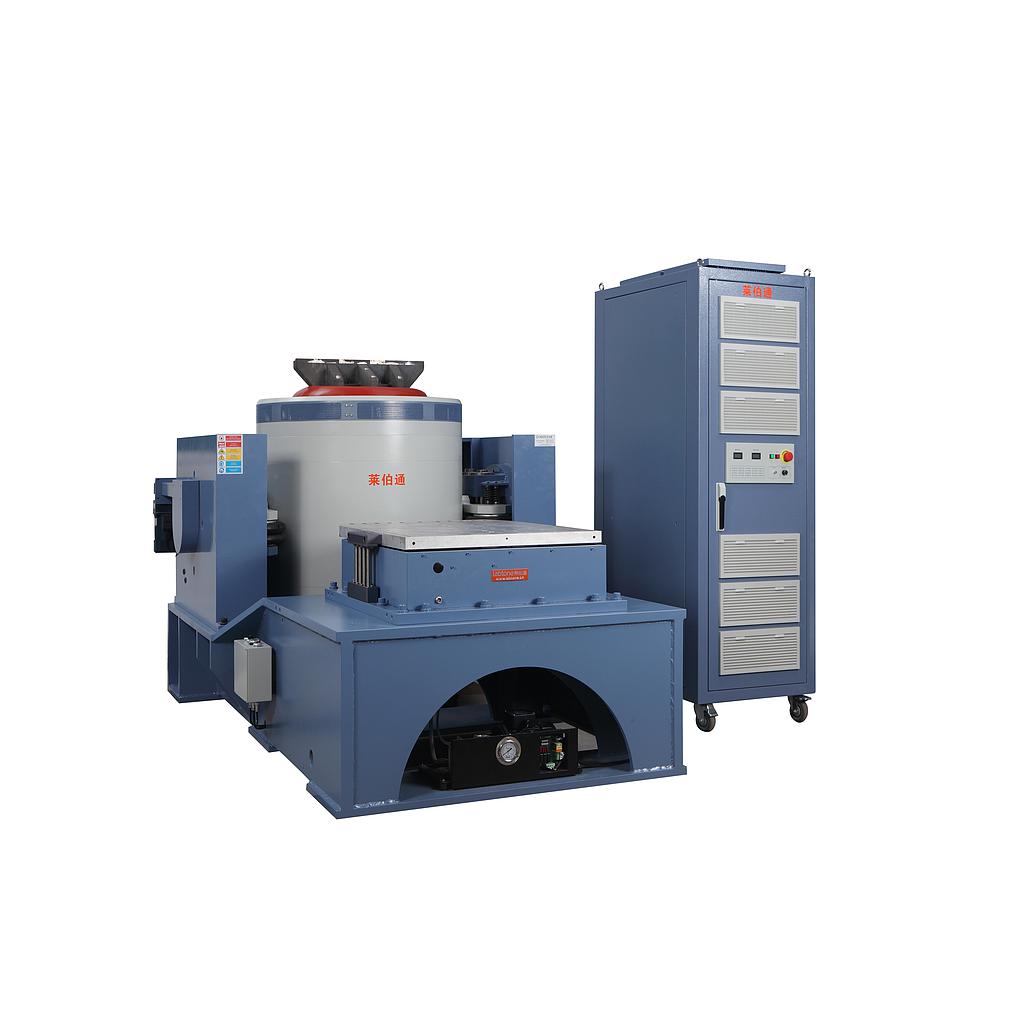

*Product image is for illustrative purposes only

Applications of Vibration Test Machine:

Automotive parts and systems – qualification testing

Electronic assembly, computer equipment testing

Avionics and military hardware testing

Satellite component testing

Product and package testing

General stress screening
