LABTONE EV210 ລະບົບທົດສອບການສັ່ນສະເທືອນຂອງເຄື່ອງສັ່ນໄຟຟ້າໄດນາມິກ (1000kgf)

Shaker Model: VG1000/50

Frequency(Hz): 2-3000

Max Exiting Force(kg.f): 1000

Max. Displacement (mm p-p): 51

Max. Acceleration(g): 100

Max. Velocity(cm/s): 200

Payload(kg): 200

Armature Mass(kg): 10

Armature Diameter(mm): φ240

Vibration Generator Weight(kg): 1100

Shaker Dimension L*W*H(mm): 845*685*840

Power Amplifier: Amp12k

Cooling Method: Forced Air Cooling

Power Amplifier Weight(kg): 350

Power Amplifier Dimension L*W*H(MM): 800*550*1520

Utility Requirements: 3-phase AC380V ±10% 50Hz

Aggregate Capacity(KW): 25

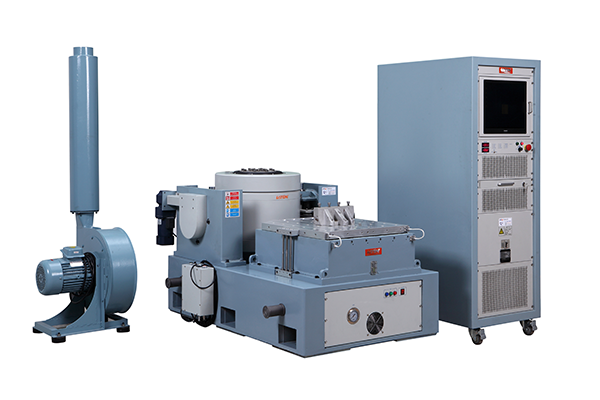

*Product image is for illustrative purposes only

Applications of Dynamic Shakers:

Automotive parts and systems – qualification testing

Electronic assembly, computer equipment testing

Avionics and military hardware testing

Satellite component testing

Product and package testing

General stress screening
