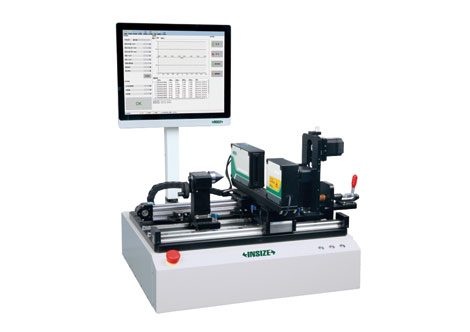

INSIZE LDM-AT01 ໄມໂຄມິເຕີສະແກນເລເຊີອັດຕະໂນມັດ (±(0.5+10%D) µm; (0.3+5%D) µm)

Workpiece clamping mode: center-type bench center (with centre holes at the end)

Measuring range of workpieces:

length: 5~300mm

diameter: 3~60mm

max. weight: 20kg

Workpiece clamping mode: V-type bench center (without centre holes at the end)

Measuring range of workpieces:

length: 10~230mm

diameter: 10~60mm

max. weight: 1.5kg

Accuracy at 25°C: ±(0.5+10%D) µm, D is measuring diameter in mm

Repeatability at 25°C: (0.3+5%D) µm,  D is measuring diameter in mm

Runout accuracy at 25°C: ≤5 µm

Size of working table: 400x200mm

Driving method: motor drive

Power supply: 220V, 50/60Hz

Dimension: 750x600x900mm

Weight: 50kg

Standard Delivery

Main unit: 1pc

Center-type bench center: 1pc

V-type bench center: 1pc

■ Motorised rotation with adjustable speed

■ Auto-moving laser scan micrometer

■ Measure the outer diameter, roundness and runout of workpieces at multiple sections

Measuring software (included):

■ Language: English and Chinese

■ Operating system: Windows 7

■ Measure the outer diameter, roundness and runout of workpieces automatically, then the data, trend graphs and judgement results can be displayed in real time

■ Auto-saving measurement data, query and export to EXCEL at any time

■Switch to manual test to move the laser scan micrometer and rotate the motor by hand
