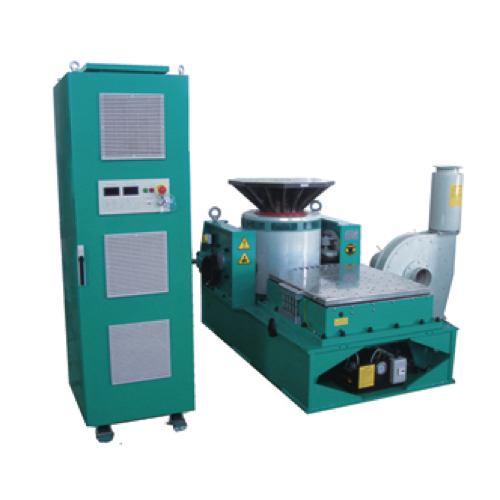

INSIZE EDV-AC1100 ລະບົບສັ່ນສະເທືອນທາງໄຟຟ້າ (1100kgf, 3300kgf, 5Hz~3500Hz)
System parameter:
Rated sine/random force: 1100kgf
Shock force: 3300kgf
Frequency range: 5Hz~3500Hz
Max. acceleration: 85g
Max. velocity: 2.0m/s
Max. displacement (P-P): 51mm
Max. load: 300kg
Shaker:
Armature diameter: 335mm
Armature resonance: 3000Hz ±5%
Effective armature mass: 13kg
Inserts size: M10
Load attachment points: 17
Natural frequency: <3Hz (thrust axis)
Stray magnetic field: ≤1mT (at 152mm above table)
Dimension: 940×715×780mm
Weight: 1000kg
Power amplifier:
Rated output capacity: 10KVA
Signal to noise ratio: ≥75dB
Amplifier efficiency: ≥90%
System protection: Multiple
Dimension: 610×900×1550mm
Weight: 400kg
Cooling fan:
Power: 4KVA
Air flow: 0.33m³/s
Air pressure: 0.0035 MPa
Air duct diameter/length: Ø120×4000mm
Dimension: 610×750×1450mm
Weight: 120kg
Operation temperature: 0°C~40°C
Operation humidity: 0%RH~90%RH (non-condensing)
System power supply: 3φ, AC 400V ±10%, 50/60Hz
System power: 22KVA
Compressed air requirement: 0.6MPa
Can be customized according to test requirements
STANDARD DELIVERY:
Main unit: 1 pc
Shaker: 1 pc
Amplifier: 1 pc
Cooling fan: 1 pc
