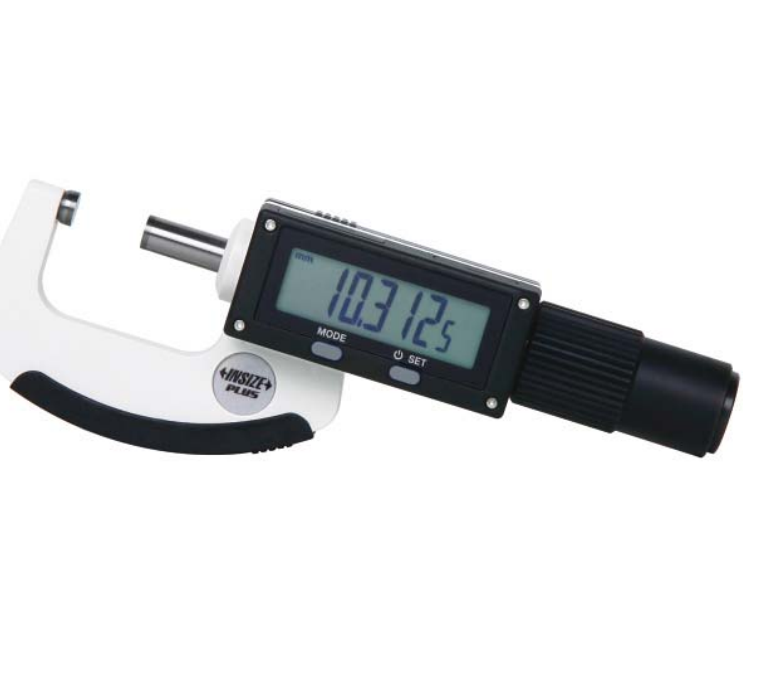

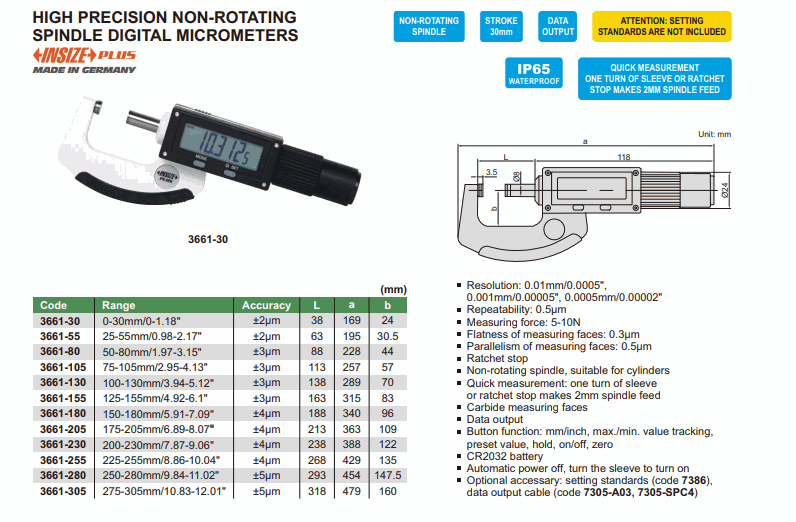

INSIZE 3661-230 ໄມໂຄມິເຕີດິຈິຕອລ ໄມໂຄມິເຕີ spindle ຄວາມແມ່ນຍໍາສູງ (200-230mm/7.87-9.06”; ±4μm)

Range: 200-230mm/7.87-9.06”

Accuracy: ±4μm

L: 238mm

a: 388mm

b: 122mm

Resolution: 0.01mm/0.0005”; 0.001mm/0.00005”; 0.0005mm/0.00002”

Repeatability: 0.5μm

Measuring force: 5-10N

Flatness of measuring faces: 0.3 μm

Parallelism of measuring faces: 0.5 μm

Ratchet stop

Non-rotating spindle, suitable for cylinders

Quick measurement: 1 turn of sleeve or ratchet stop makes 2mm spindle feed

Carbide measuring faces

Data output

Button function: mm/inch, max./min. value tracking, preset value, hold, on/off, zero

CR2032 battery

Automatic power off, turn the sleeve to turn on

Optional accessory:

-Setting standards (code 7386)

-Data output cable (code 7302-A03, 7305-SPC4)
