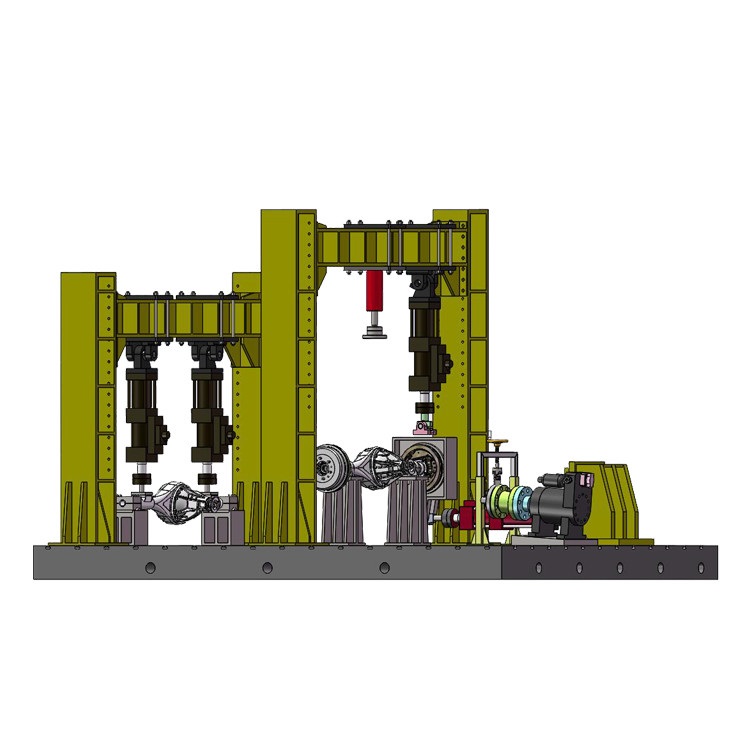

HST HSTPLW-1000 Electro-hydraulic servo trailer ລະບົບການທົດສອບ suspension (±1000kN)
1: 1000kN
Maximum static test force of actuator: ±1000kN
2: 250kN
Maximum static test force of actuator: ±250kN
3: 150kN
Maximum static test force of actuator: ±150kN
4: The precision range of static test force indicator: 2%-100%FS
5: Static test force value precision: ≤±1%
6: 1000kN
The maximum amplitude of the actuator: ±150mm
7: 250kN
The maximum amplitude of the actuator: ±125mm
8: 150kN
The maximum amplitude of the actuator: ±125mm
9: Precision of amplitude indicator: From 20% ≤±0.5%FS
10: Controller frequency range: 0.01－30Hz
11: Main test waveform: Sine wave, triangle wave, square wave, half sine wave, half triangle wave, half square wave, oblique wave and user-defined wave, etc
12: Control mode: Force or displacement control
13: Pump specifications: 3*200L/min,21MPa, 3*90kW,AC（three-phase supply），380V
