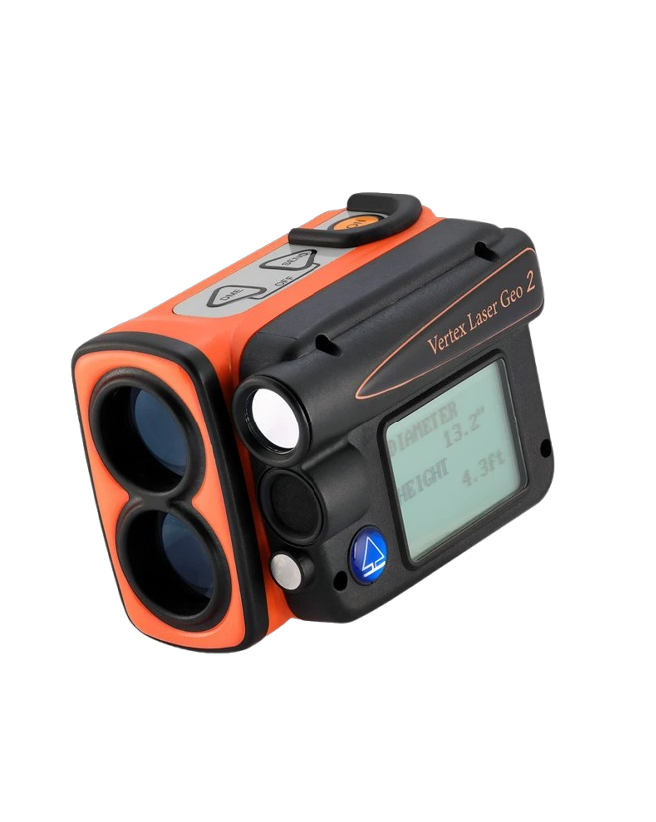

HAGLOF Vertex Laser Geo 2 ໄຮບ໌ໂຊມີເຕີ (0–999 m/ft)

Size: 93 × 63 × 72 mm / 3.7 × 2.5 × 2.8".

Weight: 243 g / 8.6 oz.

Battery and Consumption:

Built-in rechargeable Li-Ion 3.7 V battery, approximately 2,000 measurements. Maximum charging time: 3.5 h. USB Mini-B interface wall charger, 110/220 VAC input, 5 VDC output; 12 VDC car charger adapter. USB Mini-B Male/USB Type-A Male cable, 0.5 m. Maximum power consumption: 0.9 W.

Communication: IR, USB 2.0/SSD Disk. Dual-mode Bluetooth BR/EDR. Bluetooth Low Energy V4.2 (LE) and Classic connectivity. SPP (Serial Profile), PIN code 1234.

Temperature: -20 to +45 °C / -4 to 113 °F.

Height: 0–999 m/ft. Height resolution: 0.1 m/ft.

Angle: -90° to 90°. Units: Degrees 360°, Grads 400° and %. Resolution: 0.1°. Typical accuracy: 0.1°.

ULTRASOUND:

Distance: 30 m / 98 ft.

With 360° adapter: 20 m / 60 ft.

Distance accuracy: typically 1% or better.

Distance resolution: 0.01 m / 0.1 ft.

LASER:

Distance: 46 cm / 1.5 ft to 700 m / 2,000 ft, depending on the target.

Accuracy: typically 4 cm / 0.1 ft.

Resolution: 0.1 m/ft (0.01 m/0.1 ft in DME mode).

Area:

0 < area < 5,000 m² or 0.5 ha < area < 10,000 ha.

0 < area < 20,000 ft² or 0.5 acre < area < 10,000 acre.

Remote Diameter:

Sight range: 0–46 positions.

Maximum diameter: 47" at 39 ft / 98 cm at 10 m.

Resolution: 0.1" / 0.1 cm.

Accuracy: 0.5" at 39 ft / 1.2 cm at 10 m.

BAF (Basal Area Function):

BAF factor can be set between 000.0 and 999.9 (m²/ha) or (ft²/acre).

Compass:

Azimuth compass 0–360° or 0–400°, resolution 0.1°, accuracy <1.5° RMSE.

Classification:

MIL-STD-810E. Housing frame material: glass-filled polycarbonate, IP67, NEMA 6. Laser Class 1, 7 mm (FDA, CFR21), Class 1M (IEC 60825-1:2001).

Sight: Dot aim, 1× magnification.

Display: External graphic LCD, 100 × 60 pixels. Internal heads-up display.

Data Format: NMEA or ASCII. IR, Bluetooth BLE.

File Format: CSV and KML (Google Earth).

Memory: 2,000 datasets, non-volatile
