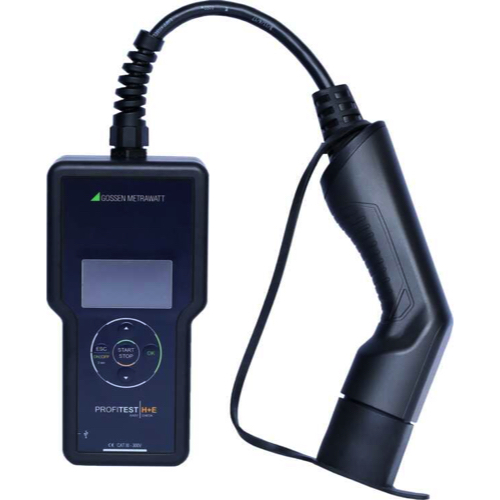

Gossen Metrawatt PROFiTEST H+E EASY CHECK ສຳລັບສະຖານີສາກໄຟໄຟຟ້າ AC (20 A, 32 A)
Standards: IEC 61851-1, VDE 0122-1
Applications: Functional testing of AC charging stations with Type 2 socket or permanently attached Type 2 cable
Key Test Functions:
Vehicle simulation (CP signal)
Cable simulation (PP): 20 A, 32 A* (*32 A only if 20 A test fails)
Vehicle states: A, B, C
Phase detection
Rotary field test
Duty cycle measurement
tOFF test (state E)
Automatic test sequence
Voltage measurement (3 phases + N)
User Interface:
Easy operation, suitable for non-specialists
Plain-text result display
Error display for service diagnostics
Display: Monochrome LCD
Safety Category: CAT III 300 V
Protection Class: Class II
Ingress Protection: IP21
Operating Temperature: –5°C ~ +45°C
Storage Temperature: –5°C ~ +60°C
Humidity: Max. 75% RH, non-condensing
Max. Operating Altitude: 2000 m
Power Supply: Internal rechargeable Li-ion battery (18650, 3.7 V, 2600 mAh, 9.62 Wh)
Charging Interface: Micro USB
Memory: Last measurement stored automatically
Dimensions (W × H × D): 110 × 70 × 210 mm
Weight: 998 g
