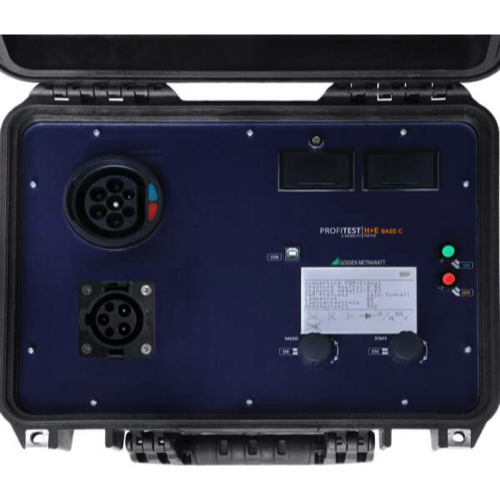

Gossen Metrawatt PROFiTEST H+E BASE C ໜ່ວຍວິນິດໄສສຳລັບການທົດສອບຈຸດສາກໄຟໄຟຟ້າປະເພດ 1, 2 (3 A / 20 A / 32 A / 63 A)
Standards: IEC 61851-1, DIN EN 61851-1
Applications: Functional testing and diagnostics of AC EV charging stations with Type 1 & Type 2 connectors
Key Test Functions:
Vehicle simulation (CP signal)
Cable simulation (PP): 13 A / 20 A / 32 A / 63 A
Vehicle states: A, B, C, D
Phase detection: L1 / L2 / L3
Phase sequence test (CW / CCW)
PWM signal analysis: frequency (1 kHz), duty cycle (%)
Charging current calculation via PWM duty cycle
Voltage level detection: 3 / 6 / 9 / 12 V
Error simulation: CP-PE short, diode short, RCD trip test (30 mA)
Integrated test load socket: Type 1 & Type 2 EV connectors
Input Voltage: 400 V AC, 3-phase
Frequency: 50 Hz
Test Load Power: Max. 2.9 kVA
Display: 4.2" backlit dot-matrix LCD, 240 × 128 pixels
User Interface: Multilingual menu (DE / EN / FR / ES / IT / PT)
Power Supply: 2 × 9 V rechargeable batteries or external power pack
Interface: USB (firmware update)
Safety Category: CAT III 300 V
Protection Class: Class I
Ingress Protection: IP21
Operating Temperature: –10°C ~ +45°C
Storage Temperature: –25°C ~ +60°C
Humidity: Max. 80% RH, non-condensing
Dimensions (W × L × H): 340 × 410 × 170 mm
Weight: 5.20 kg
