Flow Rate: 100mL/min
Min. Sample: 5mL
Max. Pressure: 30,000psi
Dimensions(cm): 70 × 36 × 30
Weight: 35 kg (75 lbs)
Max. Temp.: 80ºC (176ºF)
Power: 110V/220V
Cleaning: Flush to clean
Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration
Features: Digital display of pressure or pressure gauge
Standard Features
Parts: Y-type diamond interaction chamber with cooling option
Control System: High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 1mL, display of flow rate and time, overload protection
Pressure Gauge: Digital display on the touch screen
Inlet Type: 1/4" HP coupling
Outlet Type: 1/4" HP coupling
Inlet Reservoir: 20mL syringe
Outlet Reservoir: 20mL syringe
Product Material: 316L stainless steel, tungsten carbide, viton, teflon
Material Standard: Sanitary grade, FDA, GMP

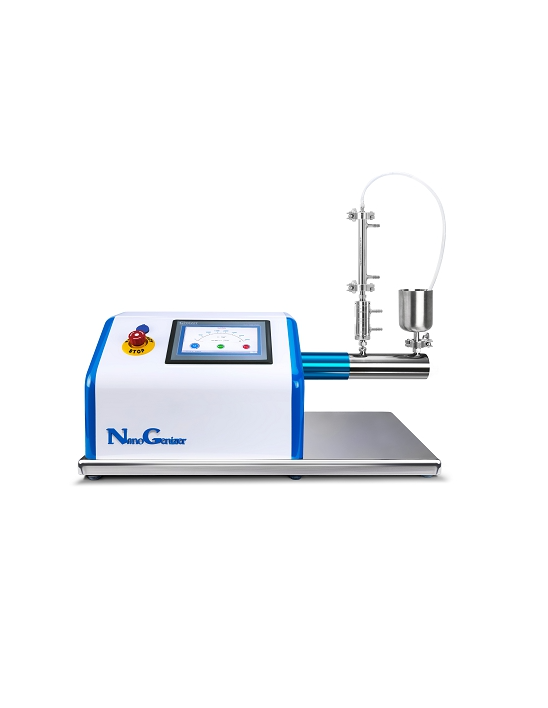

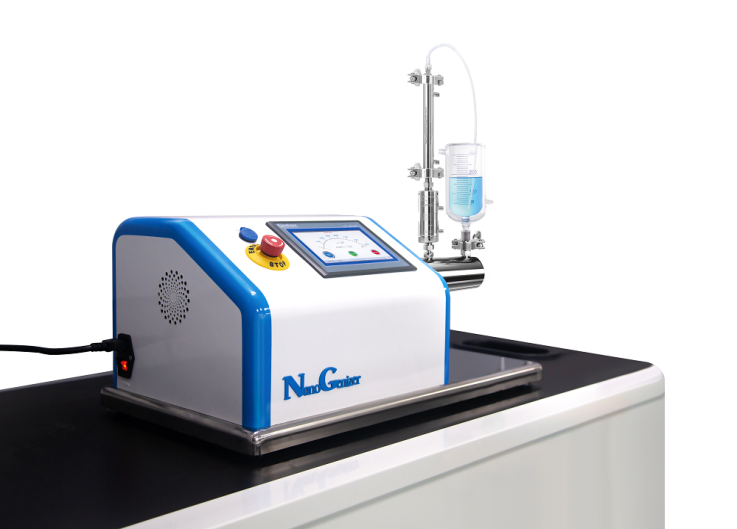

NanoGenizer Laboratory-scale High Pressure Homogenizer, "Plug & Play" Unit
The NanoGenizer-30K from Genizer is an electric benchtop, laboratory-scale, high-pressure homogenizer, which has been developed specifically for bacterial and cell lysis (such as yeasts and E. coli). It aids laboratory research and development and small-scale production at ultra-high pressure (maximum pressure up to 45,000 psi/3,000 bar), and there is no requirement for hydraulic oil or compressed air. It is available in both the 3D-printing and stainless versions.
Main Features of the NanoGenizer:

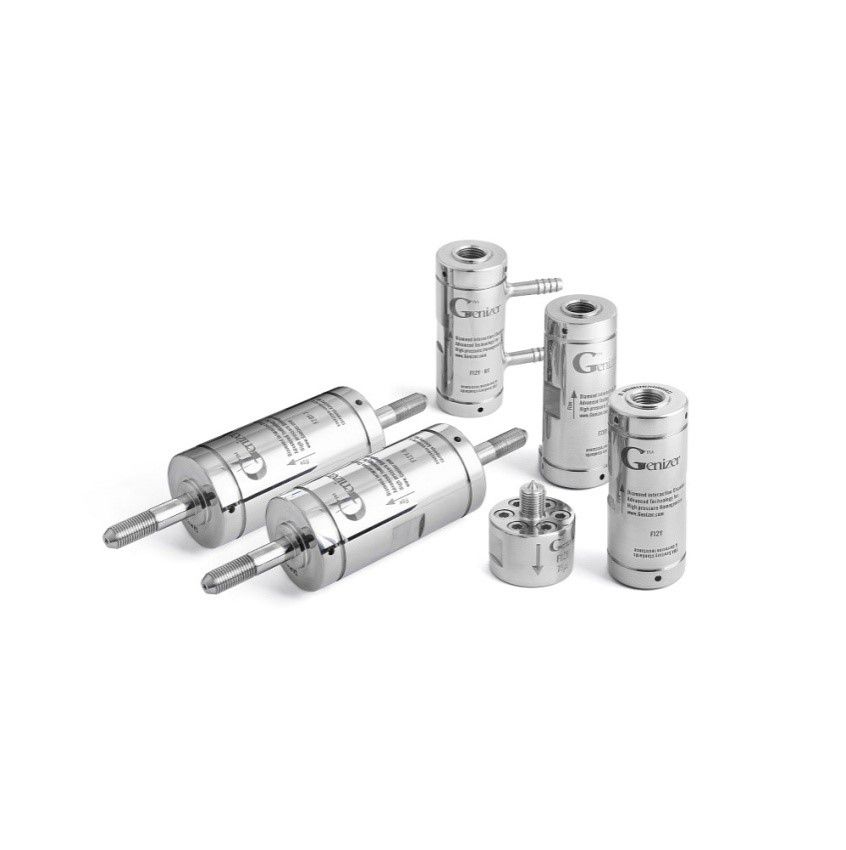

Diamond interaction chamber technology
Flow rate: ~ 100 ml/minute @ 30,000 psi
Pressure: 25,000 psi, 30,000 psi and 45,000 psi
Weight: approximately 35 kg
Minimum sample volume: 5 ml
Precision sampling as accurate as 0.1ml resolution
Touch screen, PLC control panel
Application: Nano emulsions, liposomes, fat emulsions, nano dispersion, cell disruption, deagglomeration, graphene, and carbon nanotube
The NanoGenizer features a microfluidics Diamond Interaction Chamber with nano-size microchannels inside the chamber where your formulation is subjected to forces of high shear and strong impact and result in nano particle dispersion and nano cell disruption. Using the Diamond Interaction Chamber technology, the NanoGenizer can be widely used in the pharmaceutical, biochemical, cosmetics, food and dairy industries among others. It can also support experimentations from particle size reduction to cell disruption, nano emulsions, nano dispersions, liposome and more
Flow rate (water value) | 100mL/min | 100mL/min | 60mL/min |
Min. Sample | 5mL | 5mL | 5mL |
Max. Pressure | 25,000psi (1,725 bar) | 30,000psi (2,068 bar) | 45,000psi (3,102 bar) |
Dimensions (cm) | 70×36×30 | ||
Weight | 35 kg (77 lbs) | ||
Max. Temp. | 80°C (176°F) | ||
Power | 110V/220V | ||
Cleaning | Flush to clean | ||
Features | Digital display of pressure or pressure gauge | ||
