Flow Rate: 200L/hr
HT. Rate: ~250W/°C
Max. Pressure: 1,500psi
A Connection: 2"
B Connection: 1"
Length: 450mm
Dimensions(cm): 50×70×450
Weight: 2kg
Max. Temp.: -190°C-250°C (-310ºF-482ºF)
Fitting: Tri-clamp
Sterilization: CIP/SIP
Application: Processing equipment | condensing and evaporating | regenerative heat transfer | process fluid temperature control | batch process cooling or heating | cryogenic cooling | sample cooling | clean steam condensing and sub-cooling | temperature control of high purity product
Features: Sanitary for pharmaceutical industry
Standard Features:
Parts: 9/16UNF M to 1" tri-clamp, 3/4-16UNF M to 2" tri-clamp
Surfacing: Electro-polish and inner passivation
Inlet Type: 1" or 2" tri-clamp
Outlet Type: 1" or 2" tri-clamp
Product Material: 316L stainless steel
Material Standard: Sanitary grade, FDA, GMP
Description:

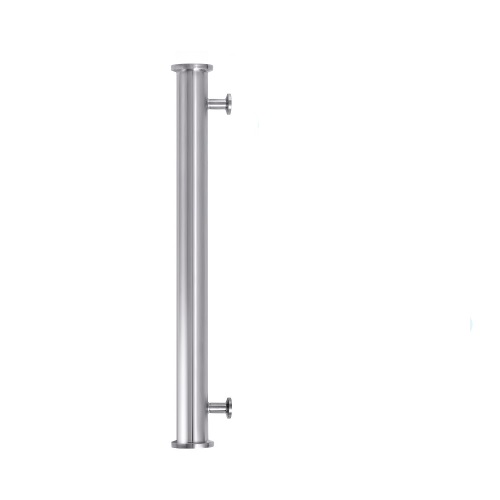

High pressure sanitary 3D shell and tube heat exchangers. Highly efficient designs, with 3D shell diameters ranging from 3/4" to 2" produce heat transfer rates up to 60 kW with flow rates up to 1,000 L/hr.
Application:
Fluid | homogenizer | extruder | biotechnology | fuel cell | semiconductor
Performance:
High pressure: up to 5,000 psi
Sanitary: 316L stainless steel
Compatible: Tri-clamp, NPT, UNF, flange and custom fittings available
Efficient: Small-diameter tubes, closely packed for maximum effectiveness.
Compatibility: GMP and FDA compliant
