Pressure Range: 0-60,000 psi (410 Mpa)
Output Signal: 4-20mA
Power: 24V DC
Electrical Cable Indicators: Red: Power +
Black: Signal +
Accuracy: 0.5%
Connection: 1/4″ HP coupling (9/16″UNF-18-Male); 3/8″ HP coupling (3/4″UNF-16-Male)
Standard Features:
Materials: Sanitary 316 stainless steel
Compatibility: Homogenizers of all brands
Other Features: Long-term stability; high accuracy
Material Standard: Compliance with FDA and GMP sanitary standards
Description:

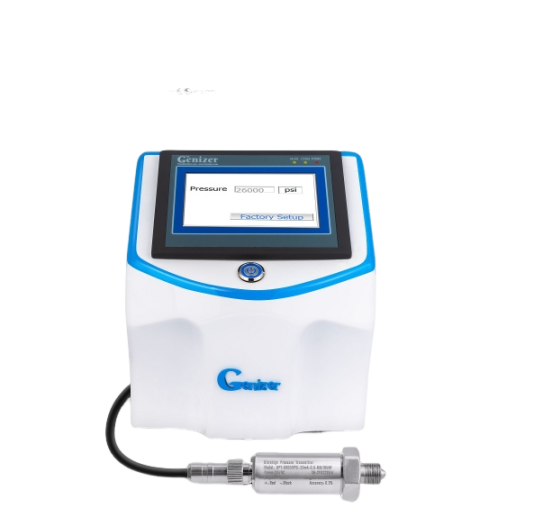

Genizer GTPT-150 Mpa is a dual-parameter transmitter, incorporating both a temperature sensor and pressure sensor into a single transmitter package, providing customers with significant cost reductions. Furthermore, it saves installation time and space, especially suitable for those high pressure applications in which dual measurements are required.
Application:
≤ 60,000 psi high pressure homogenizer or other high pressure devices
Performance:
Sanitary for pharmaceutical applications
Long-term stability
High accuracy
Datasheet
