Genizer Cat.Y-DIXC Y-Type Diamond Interaction Chamber
ຜູ້ຜະລິດ: Genizer Model: Cat.Y-DIXC - ຕິດຕໍ່ພົວພັນ
Compatibility with Microfluidizer, Avestin EmulsiFlexs, PSI:
Single-slotted: M-110Y, M-110P, M-110L, M-110S and M-110EH, PSI-20, adapt to Avestin EmusiFlxe-C3
Multi-slotted: M-7115, M-7125, M-7250, M210, M610, PSI-40
Dimensions W × D × H:
35mm × 35mm × 85mm (single-slotted)
45mm × 45mm × 200mm (multi-slotted)
95mm × 95mm × 300mm (9/16" F→9/16" M multi-slotted)
Weight:
1 lbs. (0.5kg) (single-slotted)
3 lbs. (1.5kg) (multi-slotted)
15 lbs. (7.0kg) (M610)
Cleaning: Flush to clean
Sterilization: Whole unit autoclavable
Pressure Range: 20,000 psi; 30,000 psi; 45,000 psi
Chamber Type Available:
Single-slotted: F12Y, F20Y and static homogenizing valve
Multi-slotted: F12Y-4, F12Y-5, F12Y-6, F12Y-7, F20Y-2, F20Y-4, F20Y-6, F20Y-7, F20Y-12, F20Y-13, F20-Y-17
Standard Features:
Chamber Type: Y-type diamond interaction chamber:
F12Y, F20Y, N40Y, J30Y, J20Y for M210,
F30Y, H230Y, F20Y-12, F20Y-13, F20-Y-14 for M610
Max. Pressure: 30,000 psi
Product Material: 316L stainless steel, diamond
Polishing Condition: Electro-polish and passivation for pharmaceuticals
Warranty: 1 year against any manufacturing defects
Option Features:
Chamber Type: Z-type diamond interaction chamber: H10Z, G10Z, H30Z, H210Z, H230Z, Q50Z, T50Z, T60Z, APM, diamond auxiliary processing modules (APM)
Customer Made: Customized laser mark, dimensions and fittings
Max. Pressure: 45,000 psi
Product Material: Titanium (resistant to strong acid and base)
Product Cooling: Real time cooling on chamber
Refer to Datasheet to select the appropriate model.
Genizer Diamond Interaction Chamber Technology
The Genizer diamond interaction chamber is the key component of Genizer high-pressure homogenizers. It makes use of microfluidic technology, and the inside has been provided with nano-size micro-channels. Here, the user's formulation is exposed to forces of strong impact and high shear, thereby leading to nano cell disruption and nano-article dispersion.

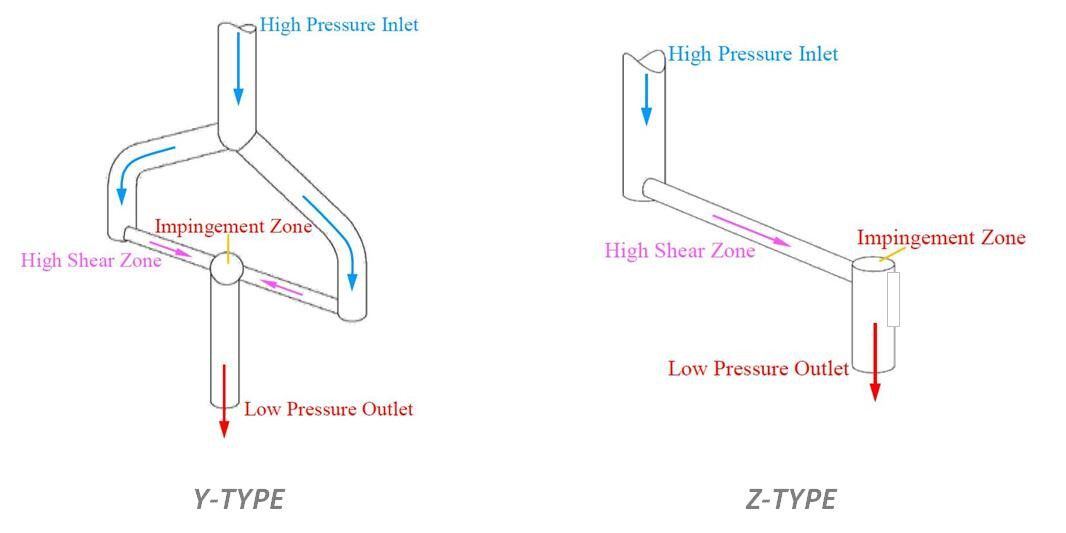

It has Y-Type and Z-type for different applications. The Y-type interaction chamber, is regarded as one of the most powerful homogenization chambers to date. In this system, the flow stream is split into two channels that are redirected over the same plane at right angles and propelled into a single flow stream. High pressure promotes a high speed at the crossover of the two flows, which results in high shear, turbulence, and cavitations over the single outbound flow stream.

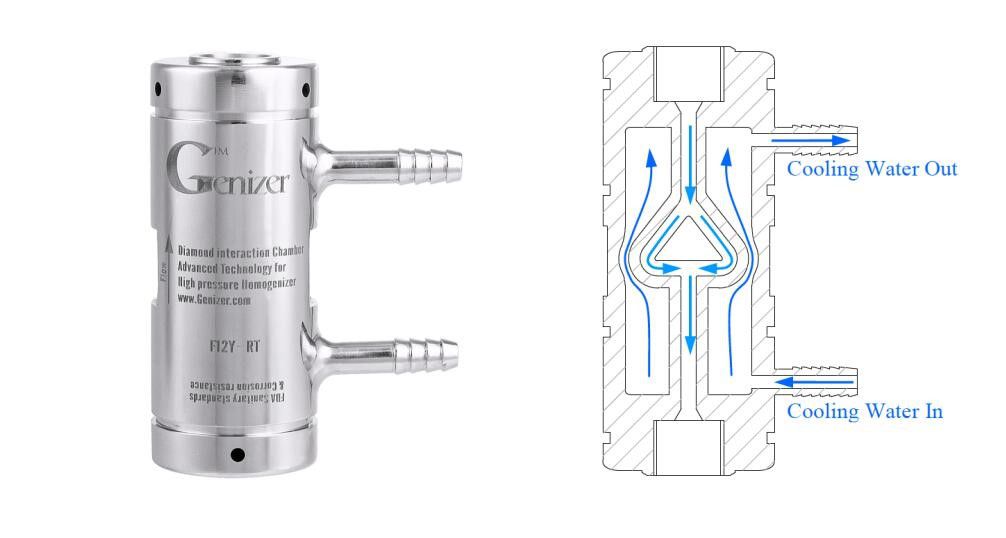

The Y-type interaction chamber is widely used in the preparation of pharmaceutical emulsions because it minimizes cavitation and produces exquisite, stable particle size and PDI (poly dispersity index) control ability. Genizer and Microfluidics Corp. are the main manufacturers of the diamond interaction chamber. At present, the Y-type diamond interaction chamber is mainly used in high-end nanotechnology, and it occupies more than 90% of the US pharmaceutical industry. Genizer’s temperature-controlled interaction chamber avoids temperature surges and enables working pressure of up to 60,000 psi.
Generally speaking, the Y-type is more suitable for the treatment of liquid-liquid materials, and Z type is for the treatment of solid-liquid materials.
Datasheet:
