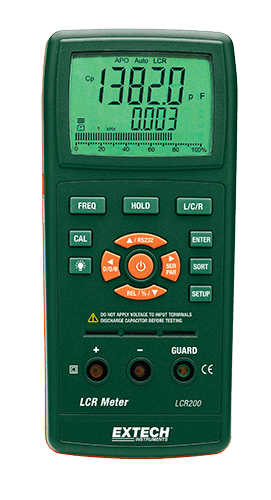

Inductance: 20μH, 200μH, 2000.0μH, 20.0000mH, 200.00mH 2000.0H, 20.000H, 200.00H, 2000.0H / ±(0.5%rdg + 5 digits)
Capacitance: 20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF, 20.000μF, 200.00μF, 2.0000mF, 20.00mF / ±(0.5%rdg + 5 digits)
Resistance: 20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ / ±(0.5%rdg + 5 digits)
Test Frequency: 100Hz/120Hz/1kHz/10kHz/100kHz
Dimensions: 7.6 x 3.5 x 1.6” (193 x 88 x 41mm)
Weight: 14.8oz (420g)
Complete with test leads and 9V battery
Simultaneous 20,000/2,000 count backlit display of the primary
parameter (L, C or R) with the secondary parameter of
Q (quality), D (dissipation) R (resistance), θ(phase), or
ESR (equivalent series resistance)
• Auto Select measurement function with 1kHz
default test frequency
• Five test frequencies
• Set Hi/Lo limits using absolute values or percentage limits
• Relative mode function
• Parallel or Series equivalent circuit
• Auto power off with disable
• Low battery and overrange indicators
• Built-in test fixture or use external test leads
• Open and Short calibration removes unwanted
stray impedances from the measurement
• Complete with test leads and 9V battery
• Optional SMD Tweezer (LCR203), plug-in SMD
