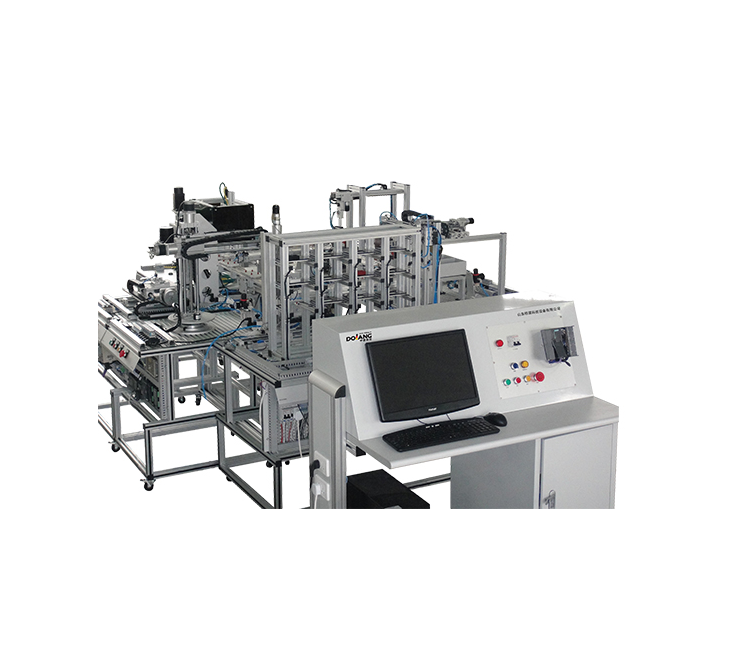

DOLANG DLFMS-8000 ລະບົບການຜະລິດແບບຍືດຫຍຸ່ນ

● Total dimension: 4100×2400×1450mm

● Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz

● Capacity: < 2KVA

■ Optional

● Computer, computer table

● Air compressor

Datasheet

● This system is divided into eight stations: console unit (PC management unit), automatic storage unit, manipulator handling unit, automatic processing unit, visual testing unit, heat treatment unit, automatic sorting unit, circular transmission unit. It can complete the overall process of processing, testing, heating, cooling, sorting, storing the workpieces. Truly representation of the actual industrial manufacturing process.

● The system has the PC self-control management system, that is industrial automatic control network which use PC in industrial manufacturing field.

● Management computer screen shows the scene of the industrial simulation images, it is convenient to set or change parameter; record the data and form reports automatically, easy to query and print. Overrun parameters automatically generated alarm information to facilitate timely maintenance; observation and analysis the key parameters through curve window, realtime monitoring equipment or process parameters.
