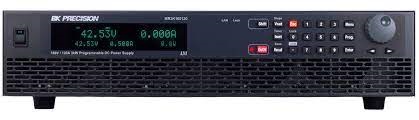

BKPRECISION MR3K160120 ການສະຫນອງພະລັງງານ DC ຫຼາຍໄລຍະແຮງດັນສູງ (160V/120A, 3000W)
- Output Rating:
Output Voltage: 0 to 160 V
Output Current: 0 to 120 A
Output Power: 3000 W
- Line Regulation:
Voltage: 32 mV
Current: 60 mA
- Load Regulation:
Voltage: 80 mV
Current: 180 mA
- Ripple and Noise (20 Hz to 20 MHz):
Voltage p-p: 120 mV
Voltage rms: 48 mV
Current rms(1): 120 mA
- Resolution:
Programming: 10 mV / 7.5 mA
Readback: 10 mV / 7.5 mA
- Programming Accuracy:
Voltage: 160 mV
Current: 360 mA
- Readback Accuracy:
Voltage: 160 mV
Current: 240 mA
- Output Response Time(2):
+ Rising Time:
Full Load: ≤ 30 ms
No Load: ≤ 30 ms
+ Falling Time:
Full Load: ≤ 80 ms
No Load: ≤ 10 s
- Protection:
+ OVP:
Range: 0 to 176 V
Accuracy: 1.6 V
+ OCP:
Range: 0 to 132 A
Accuracy: 1.2 A
- General:
Remote Sense Compensation: 3.2 V
Transient Response Time(3): ≤ 1.5 ms
Command Response Time(4): 10 ms
Effciency(5): ≥ 85%
Power Factor: 0.99
I/O Interfaces: Analog (Galvanically isolated DB25), USB (USBTMC-compliant and virtual COM), RS232, GPIB, LAN (1.5 LXI device specifcation 2016)
AC Line Input: 200 to 240 VAC ± 10%, 47 Hz to 63 Hz
AC Line Phase: Single phase
Maximum Rated Input Power: 6000 VA
Temperature Ratings:
Operation: 32 ºF to 104 ºF (0 ºC to 40 ºC)
Storage: -40 ºF to 185 ºF (-40 ºC to 85 ºC)
Temperature Coeffcient:
Voltage: 32 mV / ºC
Current: 48 mA / ºC
Dimensions (W×H×D): 16.5” x 3.5” x 21” (420 x 88 x 532 mm)
Weight: 38.6 lbs (17.5 kg)
Standard Accessories: Power cord, test report & certifcate of calibration
Optional Accessories: Rack mount kit (RKPVS)
