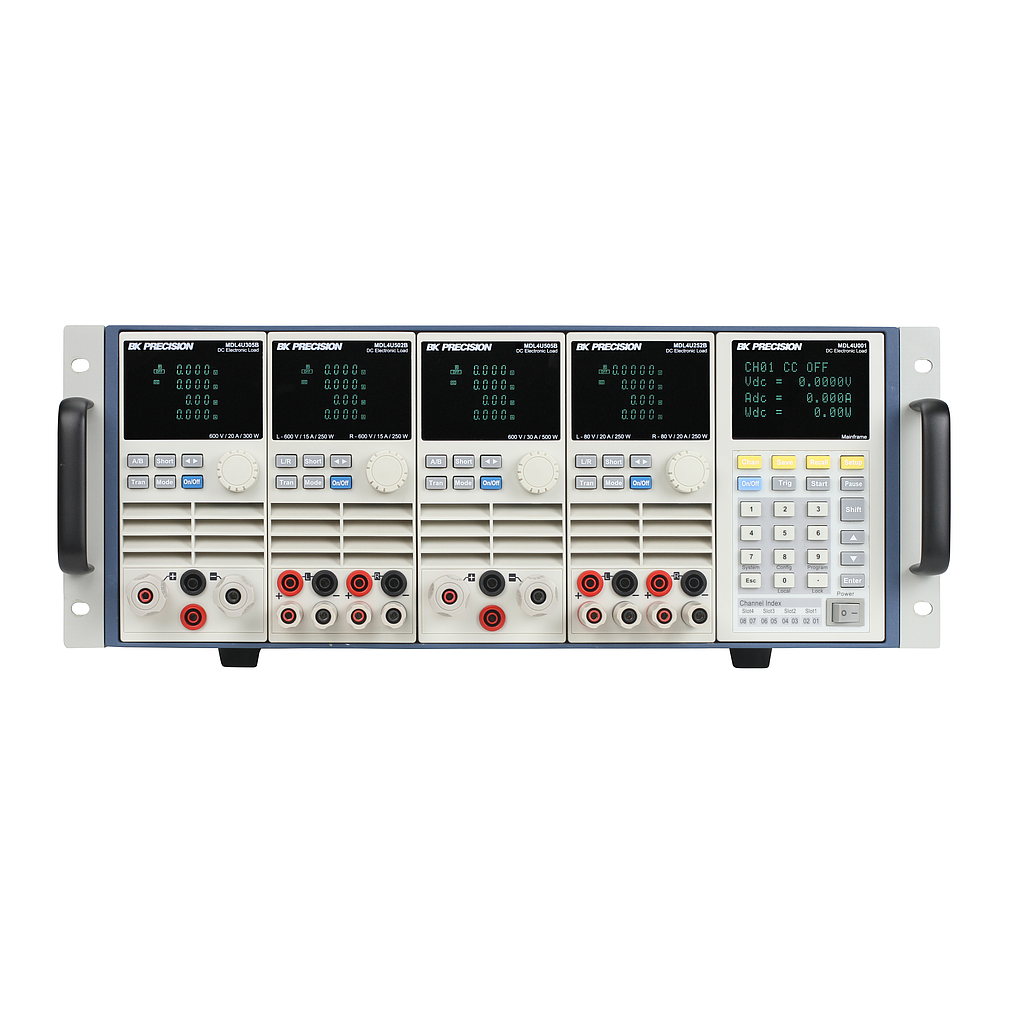

BKPRECISION MDL4U305B Modular Programmable DC Electronic Load (1CH; 600 V; 20 A; 300 W)
- Input rating:
Input Voltage : 0 to 600 V
Input Current:
Low : 0 to 3 A
High : 0 to 20 A
Input Power : 300 W
Channels : 1
Minimum Operating Voltage:
Low : 0.7 V at 3 A
High : 4.5 V at 20 A
- CV mode Range:
Range:
Low : 0.1 to 18 V
High : 0.1 to 600 V
Resolution:
Low : 1 mV
High : 10 mV
Accuracy:
Low : ± (0.05% + 0.02% F.S.)
High : ± (0.05% + 0.025% F.S.)
- CC mode :
Range:
Low : 0 to 3 A
High : 0 to 20 A
Resolution:
Low : 0.1 mA
High : 1 mA
Accuracy:
Low : ± (0.05% + 0.05% F.S.)
High : ± (0.05% + 0.05% F.S.)
- CR mode:
Range:
Low : 0.25 Ω to 10 Ω
High : 10 Ω to 7.5 kΩ
Resolution : 16-bit
Accuracy:
Low : 0.01% + 0.08 S
High : 0.01% + 0.0008 S
- CW mode:
Range: 300 W
Resolution : 10 mW
Accuracy : ± (0.2% + 0.2% F.S.)
- Transient mode (CC mode):
T1&T2(2) : 20 µs to 3600 s / Res: 5 μs to 10 ms
Accuracy : 5 μs + 100 ppm
Slew Rate(3):
Low : 0.0001 to 0.1 A/μs
High : 0.001 to 1 A/μs
- Readback Voltage:
Range:
Low : 0 to 18 V
High : 0 to 600 V
Resolution:
Low : 1 mV
High : 10 mV
Accuracy : ± (0.025% + 0.025% F.S.)
- Readback Current:
Range:
Low : 0 to 3 A
High : 0 to 20 A
Resolution:
Low : 0.01 mA
High : 0.1 mA
Accuracy:
Low : ± (0.05% + 0.05% F.S.)
High : ± (0.05% + 0.05% F.S.)
- Readback Power:
Range: 300 W
Resolution : 10 mW
Accuracy: ± (0.2% + 0.2% F.S.)
- Protection Range (typical):
OPP : 300 W
OCP:
Low : 3.3 A
High : 22 A
OVP : 510 V
OTP : 185 ºF (85 ºC)
- General (typical):
Short Circuit:
Current (CC):
Low : 3A
High : 20 A
Voltage (CV): 0 V
Resistance (CR): 220 mΩ
Input Terminal Impedance: 1 MΩ
Safety: EN61010-1:2010+A1:2019, EU Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic Compatibility : Meets EMC Directive 2014/30/EU, EN61326-1:2013
Dimensions : 3.2” x 6.7” x 22.6” (82 x 170.5 x 573 mm)
Weight: 11 lbs (5 kg)
