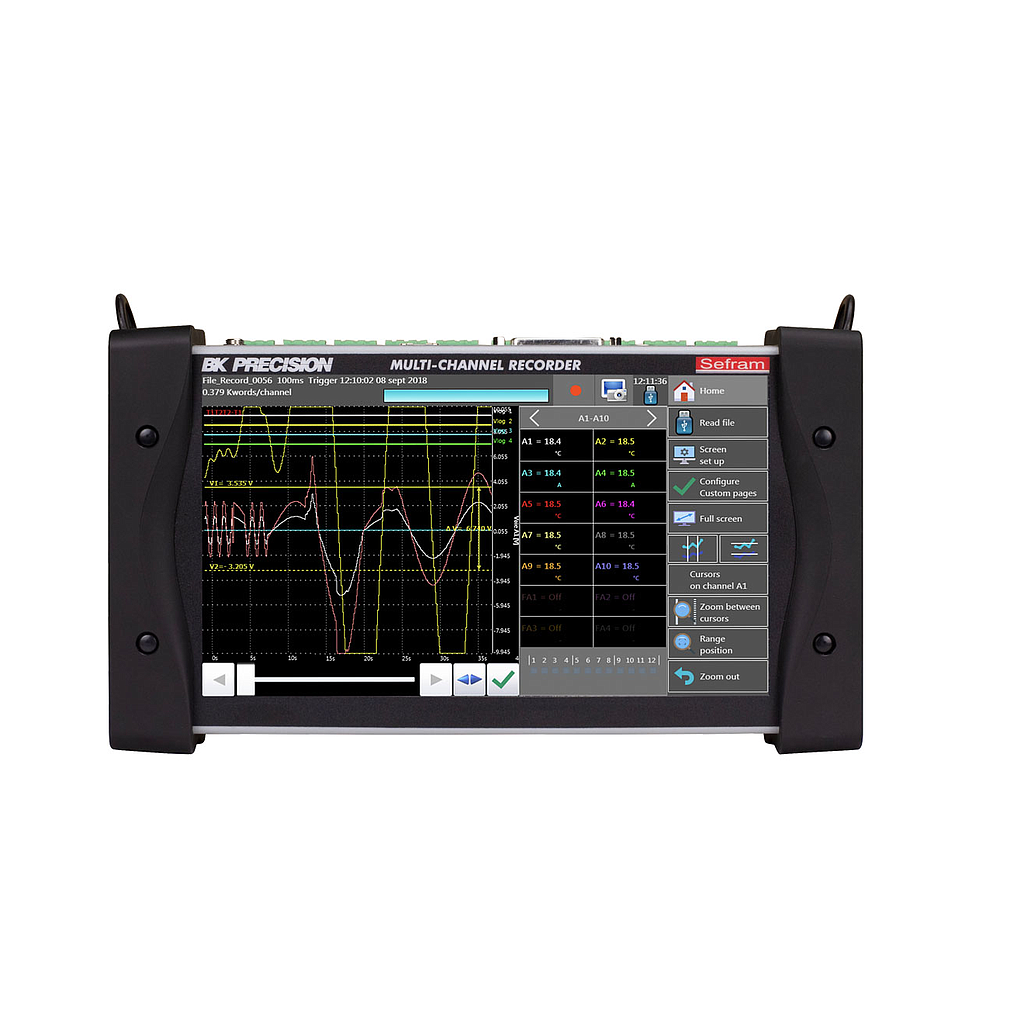

BKPRECISION DAS220-BAT ເຄື່ອງບັນທຶກຂໍ້ມູນ 10 ຊ່ອງແບບພົກພາ
- Analog Channels
Analog Input Channels: 10 integrated channels
DC Voltage
Ranges:
± (0.5, 1, 2.5, 5, 10, 25, 50, 100) mV
± (0.5, 1, 2.5, 5, 10, 25, 50, 100) V
Maximum input Voltage 100 V DC
Accuracy 0.1% of the full scale ±10 µV
- Temperature with Thermocouples
Sensors Range by Type (Cold junction compensation: ±0.5 °C)
J -210 °C to 1200 °C
K -250 °C to 1370 °C
T -200 °C to 400 °C
S -50 °C to 1760 °C
B 200 °C to 1820 °C
E -250 °C to 1000 °C
N -250 °C to 1300 °C
C 0 °C to 2320 °C
L -200 °C to 900 °C
- Temperature with Pt100 and Pt1000
Current: 1 mA (Pt100), 100 µA (Pt1000)
Range: -200 °C to 850 °C
Measurements: 2 and 3 wires
Accuracy: (at 20 °C) 0.3 °C ±0.1% of reading
Compensated Resistance
2 wires: 30 Ω max.
3 wires : 50 Ω max.
- Resistance
Ranges: 1 kΩ and 10 kΩ
Accuracy 1 Ω (range 1 kΩ) and 10 Ω (range 10 kΩ)
- Logic Channels
Logic Input/Output
Number of Channels: 12
Maximum Permitted Voltage: 24 V Cat I
Input Impedance: 4.7 kΩ
Sampling Rate: 1 ms max.
Timing Input
Number of Channels: 4 (K1 to K4)
Maximum Permitted Voltage: 24 V Cat I
Input impedance: 4.7 kΩ
Sampling Rate: 1 ms max.
Pulse Counter: 0 to 10 Million, accuracy 0.1%
Frequency Measurement :1 Hz to 10 kHz, accuracy 0.1%
PWM Measurement :100 Hz to 2 kHz, accuracy 0.1%
Alarm Output
Number of Channels: 4 Alarms (A, B, C, D)
Output Level: 0 to 5 V
General
Internal Flash Drive Size: 32 GB
Maximum File Size: 2 GB
Operating Temperature: 0 °C to 40 °C, 80% RH (no condensation)
Storage Temperature : -20 °C to 60 °C
Display: 10” TFT touchscreen LCD, backlit, 1024 x 600 dots
Power Supply: 15 V / 4 A max with main adapter (100 / 240 VAC)
Interfaces: 2 x USB host, LAN (10/100 base-T with RJ45 socket)
Battery: Non removable, Lithium-ion
Typical Battery Life: 15 hours with standby mode, 10 hours without stand-by mode
Safety: Cat I 100 V, according to IEC61010-1
Weight: 3.3 lbs (1.5 kg)
Dimensions: (W x H x D) 2.6” x 11.7” x 6.9” (66 x 298 x 176 mm)
Supplied Accessories
Main adapter 100 / 240 V, 25 pin male connector(1) and backshell, 10 input connectors, shoulder strap, stylus, soft wipe, and screwdriver
