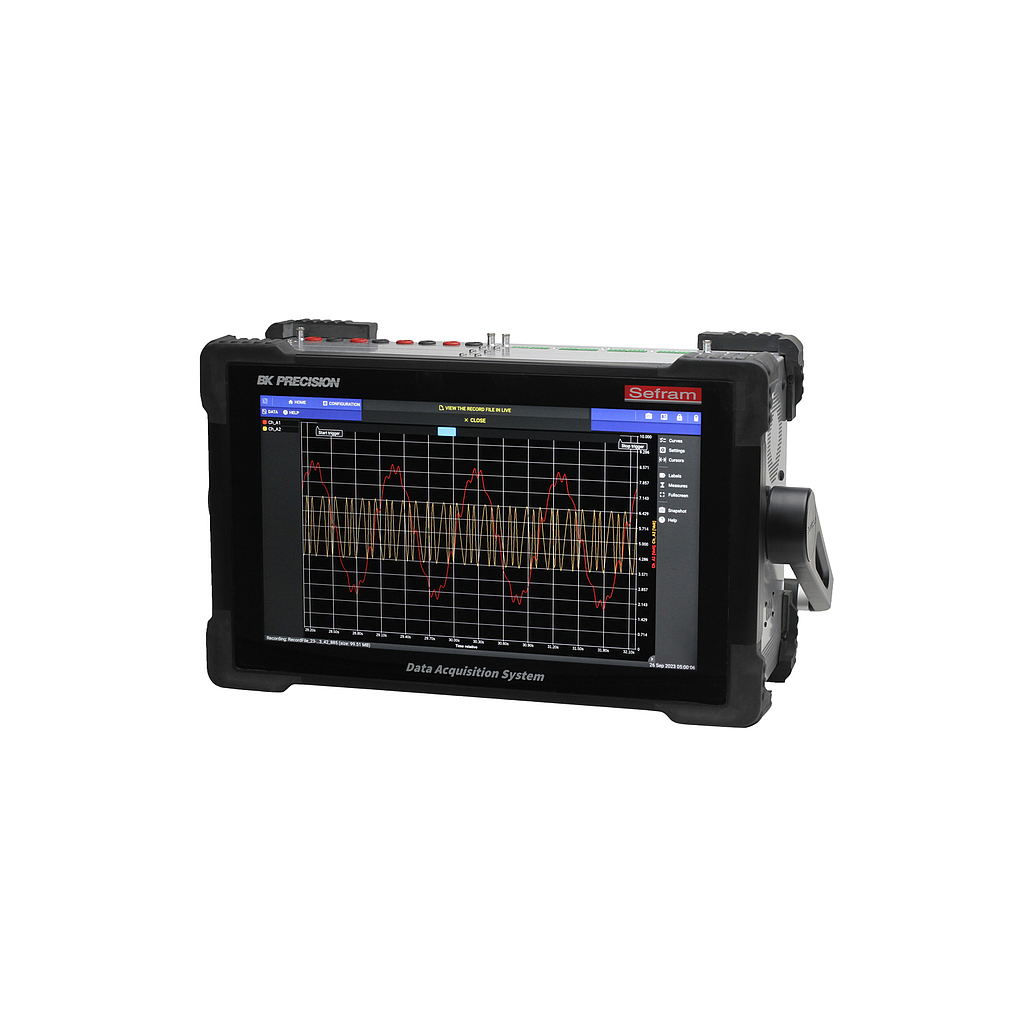

BKPRECISION DAS1800 ເຄື່ອງບັນທຶກການມາຂໍ້ມູນຄວາມໄວສູງ
Data Acquisition System
Recording (files written to SSD)
Max Sampling Rate: 1 MSa/s up to 40 channels
Recording Groups: 4
Write Speed: 120 MB/s (7 GB/min)
File Format: ASAM MDF4 (.mf4)
File Size Limit: 90% of disk capacity
At End of Acquisition: Notify, rearm trigger
Real Time Measure
F(t)
Roll mode: 100 ms/div to 10 min/div
Scope mode: 10 μs/div to 50 ms/div
DMM
Acquisition time: 200ms (10 NPLC2 at 50Hz), 2s (100 NPLC2 at 50Hz)
Record live view: Typical Refresh period 2s, Zoom Mode
Custom: 2 Customizable Views Widgets: F(t), RecLive F(t), DMM, Picture
File Viewer
Open File Time (typical): 10 sec per 100 GB of file
Subplot: 16
Cursors: Horizontal, vertical
Measurements
On the data displayed or between cursors
Min, Max, Pk to Pk, Frequency, RMS, Rising time
Trigger System
Compute Period: 1 µs
Source: Analog and logic channel, external source, manual, date/time, delay (on start), duration (on stop), AND/OR combination of channels (128 max) On Analog Channel Edge (rising, falling, both), Threshold (above, below), windows (in, out)
Pre-trigger: 128 Msamples
Post-trigger: 1000 s maximum
Digital I/O
Input
Number of Channels: 16
Max Voltage: 24 V
Threshold: 1.2 V to 2.8 V
Sampling Interval: 1 μs (1 MSa/s) each channel
Output
Number of Channels: 4
Output Characteristics: TTL 5 V, 10 mA
Trigger Source: Analog/Digital channels, acquisition start/stop, disk full
Power Supply: + 12 V ± 5 %, 200 mA
Power Supply Outputs
Maximum Power Consumption: 5 W
Output Characteristics:
+ 3.3 V ± 5%, 500 mA; + 5 V ± 5%, 500 mA
+ 12 V ± 5%, 400 mA; + 24 V ± 5 %, 200 mA
General
Internal Solid State Memory: 2 TB SSD 3D TLC NAND
Operating Temperature: 0 °C to 40 °C (32 ºF to 104 ºF)
Storage Temperature: -20 °C to 60 °C (-4 ºF to 140 ºF)
Display: 15.6” TFT LCD full HD 1920x1080
Power Supply:110 VAC to 240 VAC ± 10%, 50 to 60 Hz (150 VA max)
Protection: Fuse 2 x T4AL250V, 120 VDC to 370 VDC
Interfaces: USB 3.0 (x2), USB 2.0 (x2) , LAN 1 Gbps (x2), HDMI (x1)
Battery (optional): Non removable, Lithium-ion
Battery Life (typical):
3 ½ hrs - One D18-UNI4 module installed
1 ½ hrs - Ten D18-UNI4 modules installed
Weight:
15 lbs (6.8 kg) base unit + battery option
1.21 lbs (550 g) each module
