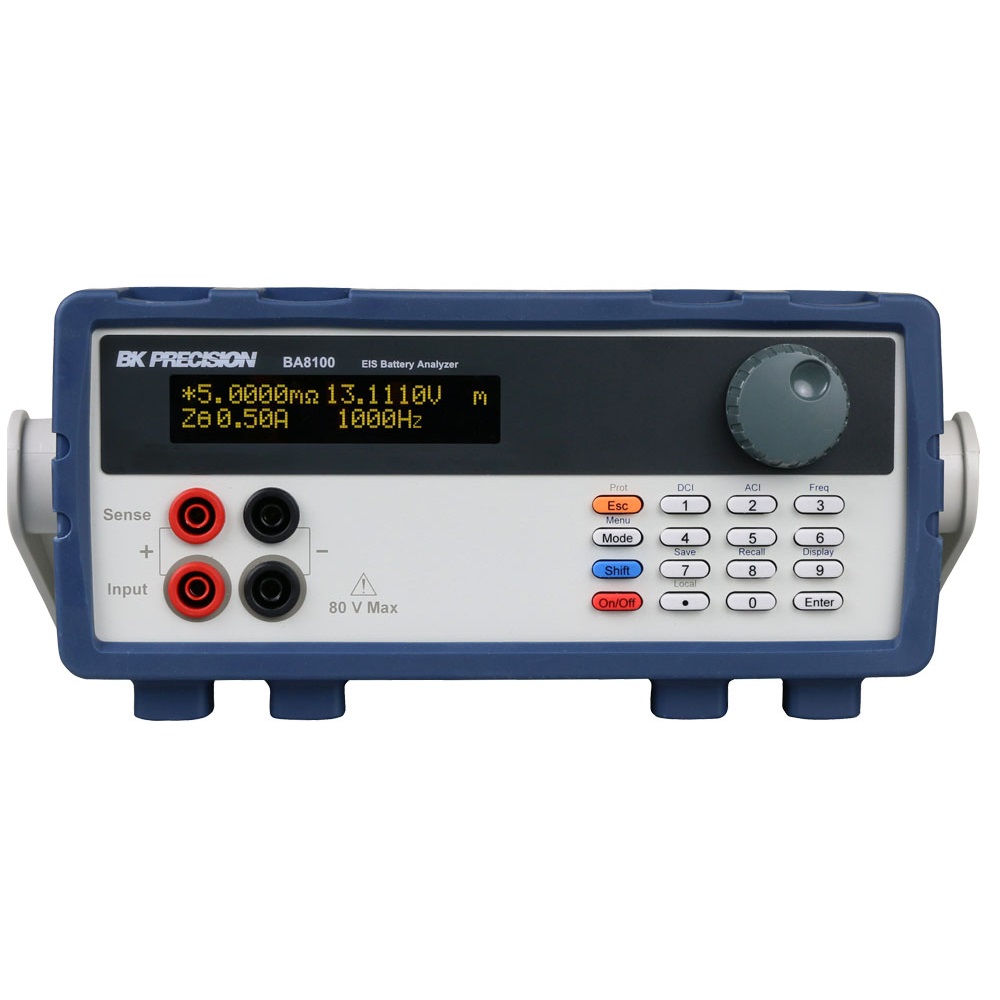

BKPRECISION BA8100 ເຄື່ອງວິເຄາະແບັດ EIS
Impedance Z Accuracy: ±(0.5% of reading + 5 µΩ)
Rated Voltage: 0.5 V to 80 V
Rated Current: 0.5 A to 3 A DC
Frequency Range: 0.05 Hz to 10 kHz
AC Input: 100 VAC to 240 VAC, 50/60 Hz
UUT Connector: 4-terminal banana jack
I/O Interfaces: LAN, USB (Virtual COM), RS232
Operating Temperature: 32° F to 104° F (0° C to 40° C)
Storage Temperature :14° F to 122° F (-10° C to 50° C)
Dimension: (W x H x D) 8.5 “ x 3.5” x 14.6” (215 x 90 x 370 mm)
Weight: 9.9 lbs (4.5 kg)
Software: Bundled software for fixed or frequency sweep, Nyquist and Bode plots
Standard Accessories: Power cord, kelvin clip test leads, calibration certificate,
calibration test fixture (TLC81)
